IMPORTANT NOTE:

My apologies to all about this note at the beginning of the article but I have lost count of the number of times I have had people PM me looking for fault-finding advice but without any idea of what is causing the fault on their conversion because they do not have a means to interrogate the ECU/immo.

Please get either a copy of VAGCOM/VCDS or a reliable fault reader before starting the tdi conversion.

It is an absolutely essential piece of equipment due to the electronic control on these engines. Without some way to interrogate the ECU or immo you are peeing in the wind as you will never know what the faults are or what is causing the particular undesirable behaviour you are experiencing - it's a bit like trying to play chess in the dark. Please do not PM me about your non-running TDI conv. if you do not have a reliable fault-reader with the ability to retrieve DTC's [/soapbox]






1.9TDI Conversion Wiring

I have finally decided to tackle the write-up of the information that I have collected for this part of the 1.9 TDI conversion in the hope that it may be useful to others. I have opted divide this into 2 parts. In this first one I will cover the wiring and connectors you need to keep for the fusebox, brake switch, immobiliser, etc.

The basis for this write-up is an engine bay wiring harness from a 1997 VW Golf 1.9TDI 1Z/AHU engine code with the Bosch 68 pin ECU. However, much of the info (including wiring colour codes) is applicable to other donor vehicles and engine codes. Although, I should mention that some (but not all ) SEAT vehicles use a different colour coding scheme, the wiring will be the same and can be checked using a multimeter between the ECU connector and the signal wire in question with the info below.

So what connectors and parts of the wiring harness (loom) do I need to keep and what can I throw away?

Well, I have decided to try to keep things as simple as possible such that you can avoid chopping wires and generally 'butchering' the loom. To start with I stripped the insulating tape off the harness between the 'branches' so that I could sort the individual leads. You will need a large flat surface for this (a cleared garage floor is what I used) else things start to get out of hand and you'll end-up feeling very frustrated indeed with your pile of spaghetti :)

The easiest thing to do is to identify the connectors outlined below and remove all others and strip the wiring to them out of the harness/loom as they will not be required. A basic rule-of-thumb is: if it doesn't lead to the ECU or one of the associated sensor connectors or engine, you don't need it!

For the Golf engine bay harness, having spread it out on the floor along its length, you will see that the ECU connector, engine circular multiplug and associated sensor connectors are at one end. At the other end, is the Golf lighting/horn/etc. circular multiplug and harness on its own. All of the fusebox connectors are about 1/4 of the way along the harness from the circular lighting multiplug.


Pic.1 - Lighting Wiring Harness multiplug

This multiplug and harness is connected electrically to the rest of the engine bay harness only by means of a series of ground wires (plain brown) which can be cut but we'll come to that later. The easiest thing to do at this point before cutting any wires is to start slicing the harness tape along its length (or simply unravel it if you like - I found it easier to slice open however) around the 'A1' and 'A2' multiplugs (they will only fit in locations A1 and A2 on the fusebox) and the red 4 pin connector (shown in the picture below).


Pic.2 - A1, A2 and 4 pin red connector on the lighting harness

Once you have opened the tape and removed it, tease these three plugs loose (otherwise read: 'untangle while cursing VW to hell') from the rest of the wiring and connectors. Having done this you will see that all that connects this part of the harness to the rest is two/three brown ground wires and a single brown/red which connects to pin 5 of connector G1 - these can be cut, safe in the knowledge that the remnants will be removed later - see Pic.7 of fusebox and connectors below noting pin 5.

Once this has been removed you will be left with a harness that has fusebox connectors at one end, and engine connectors at the other. So, working your way along (towards the ECU connector) slice the tape open until you reach the end of the heavy positive lead (it has a heavy eyelet and battery connector attached to it) shown below - this is the main supply from the battery to the fusebox but your van will have this already, so it's not needed. This can now be lifted clear of the main harness.

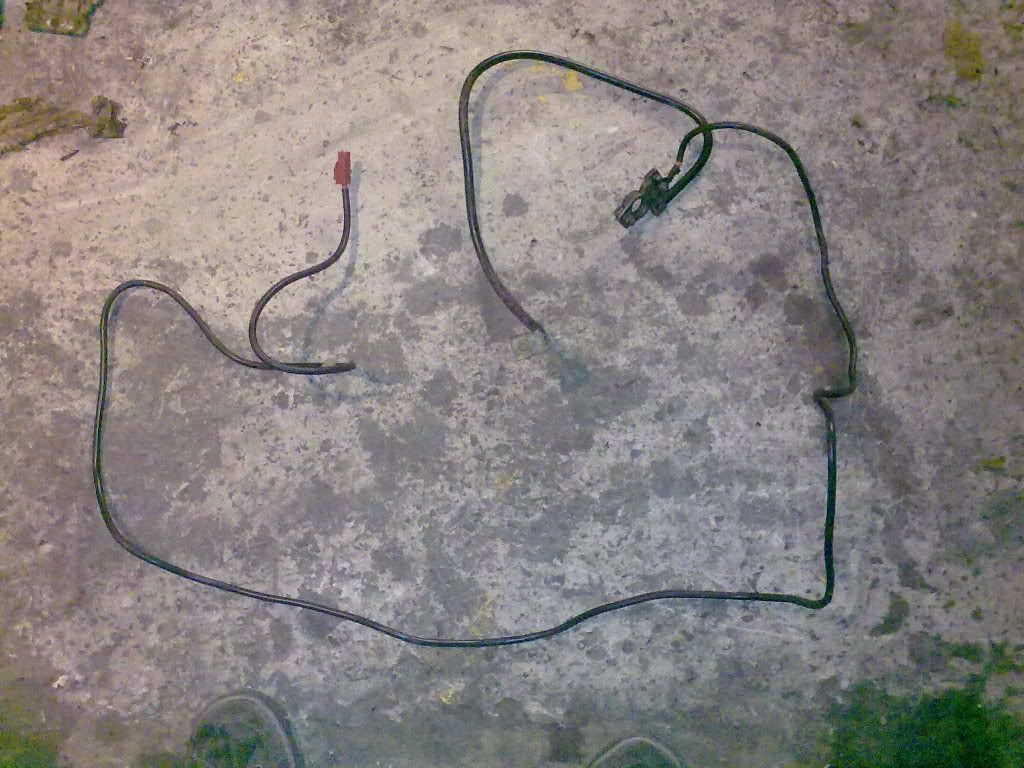

Pic.3 - Battery +VE to fusebox lead

The next step is to remove the battery ground lead -ve which is mainly connected to a series of brown wires which are not associated with the engine control. Starting at the fusebox-end locate the heavy brown wire with the spade connector on it as shown below.

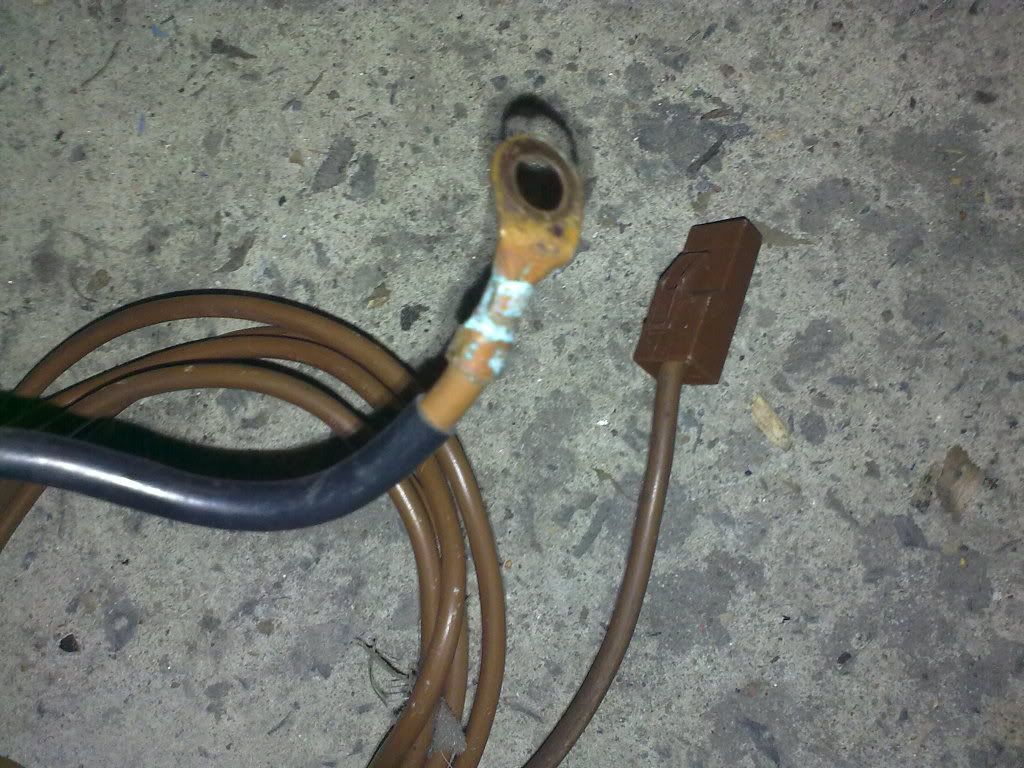

Pic.4 - Fusebox to battery -VE lead

Tease this out of the harness all the way to the end until you are met by a piece of clear heatshrink. The brown lead enters this and emerges the other side as a black lead with a lug which is normally connected to battery -VE NOTE DO NOT REMOVE THE OTHER BLACK LEAD (also with a lug) THAT GOES TO THE ECU CONNECTOR you will need this! You will see that it is connected to 6 other smaller brown wires in the heatshrink as shown below (except that I have cut these down in the pic but you can see the stubs). Some of these will have previously been connected to the lighting circuit that you cut earlier (remember?).

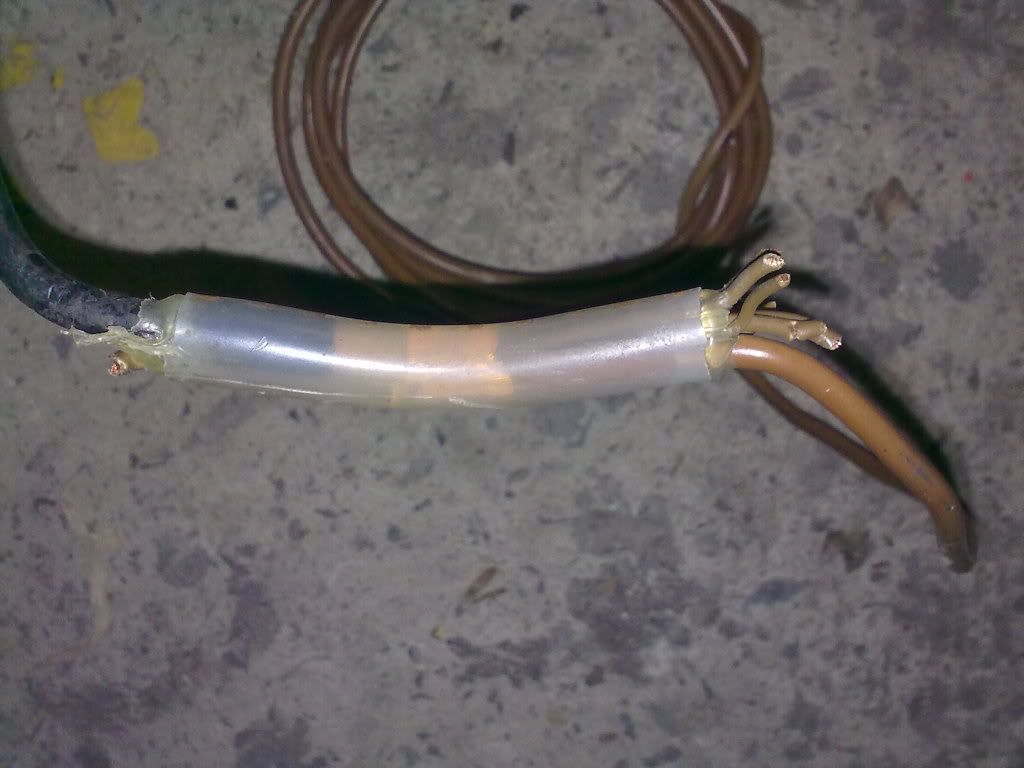

Pic.5 - Battery negative leads joined in harness

Lift as much of this whole mess out of the harness as you can. You will notice that some of the small brown wires are connected to the next bit of harness that we are going to remove so snip them away.

The last bit of unused harness to be removed is shown in the pic below. It basically involves the steps described previously. I have no idea what this stuff originally was used for as I did not remove the harness from my donor vehicle and I just havent had the time to check the circuit diagrams out to find out where they should've been. Suffice to say they are not needed and can be cut out. Getting back to the fusebox connectors locate multiplug 'C' and tease this out of the loom. You will find that it is connected to the mess illustrated below which can all be lifted out of the loom including the 2 white connectors with the green wires which were originally connected to the wiper circuit in the Golf.

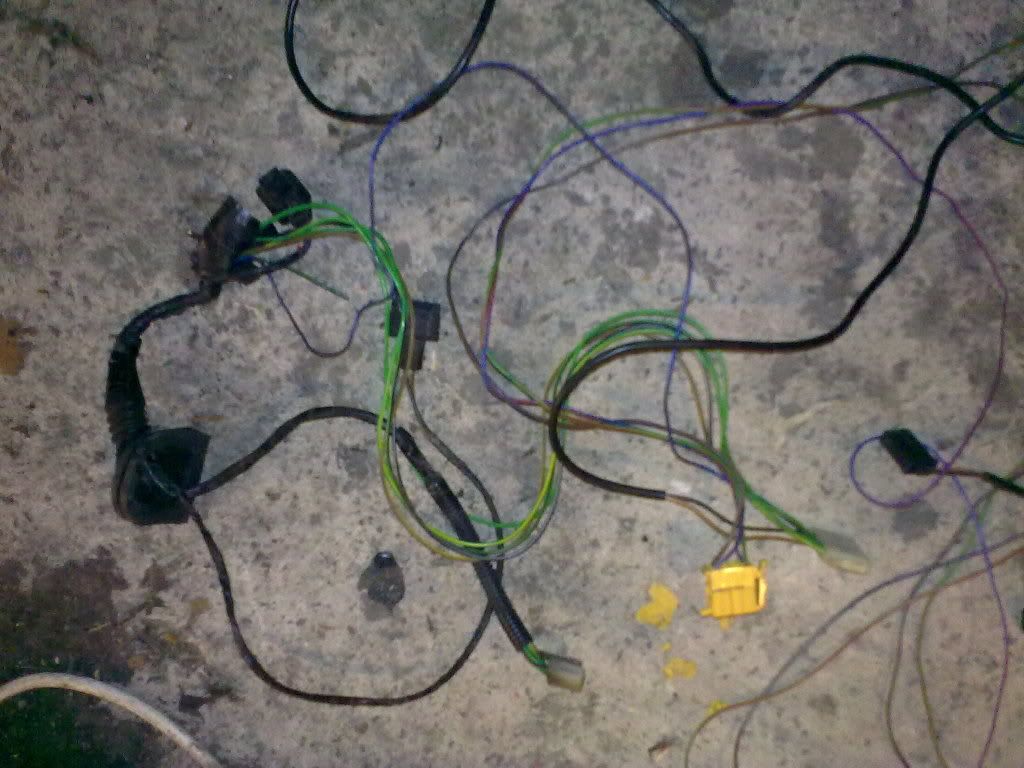

Pic.6 - Remaining unused bits of the harness which can be discarded


After all the ripping and tearing, for the fuse box and cabin wiring, you will need to keep the following

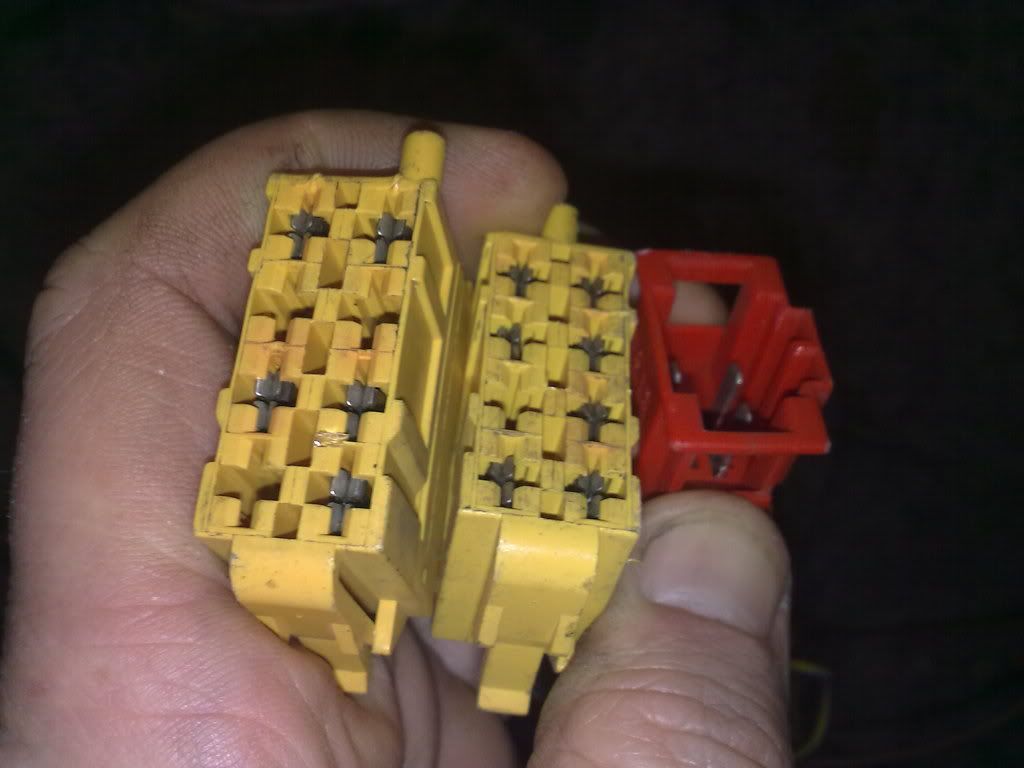

Pic.7 - Multiplugs F, G1, and G2 which plug into the fusebox itself



Pic.8 - The glowplug supply and fuseholder



Pic.9 - The throttle position sensor multiplug

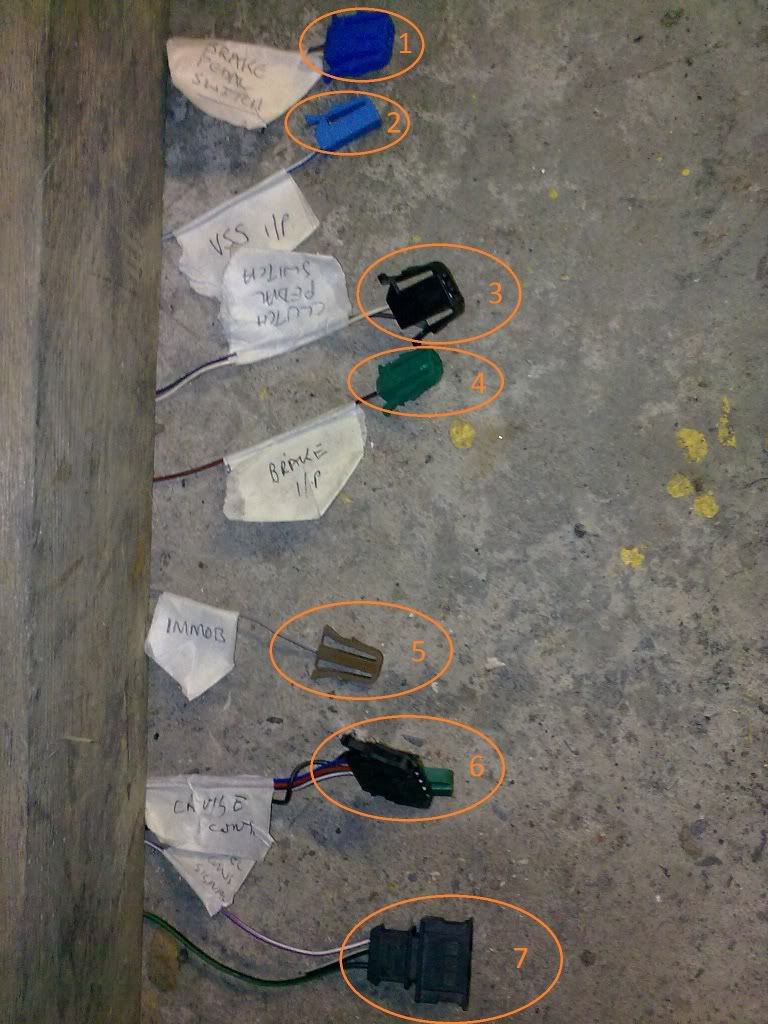

Pic.10 - ...and these.

Following the numbering scheme in the diagram above:
1) Brake Pedal Switch
Blue 2 pin connector
Pin1 = brown/white -> analogue ground -> pin 33 ECU
Pin2 = white/yellow -> pin 20 ECU

This is connected to the ECU and must be triggered at the same time as the main vehicle brake light signal (see 4 below ). It is used by the ECU to reduce the injected fuel quantity under braking as well as deactivate cruise control.

2) Vehicle Speed Signal
Blue single pin connector = blue/white tracer -> pin 43 ECU
Used to assess the vehicle speed, and is fed through from the instrument cluster. This signal is used to maintain vehicle speed when cruise control is activated.

3) Clutch Pedal Switch
Black Connector
Pin1 = brown/white -> analogue ground -> pin 33 ECU
Pin2 = white/red -> pin17 ECU

Used by the ECU, to tell when the clutch is engaged, injected fuel quantity is then reduced briefly to alleviate
engine shudder when changing gear. Also used as a signal to deactivate cruise control if currently active.

4) Brake Pedal Input
Green single pin connector = black/red -> pin44 ECU
This signal is used in conjunction with the brake pedal switch above to reduce the injected fuel quantity and hence as a safety interlock to over-ride a faulty throttle position sensor. It is connected to the brake light switch (switched side) via junction box TV11 on the golf fusebox. No actual provision is made for this on the T4 harness but it can be connected directly to the switched side of the T4 brake circuit (either: (1) pin4 connector W (2) pin4 of connector K or (3) pin3 of connector 'E' on the fusebox whichever is most convenient).

5) K-line comms.
Brown single pin connector = grey/white -> pin61 ECU
If your car has an immobiliser it will be connected to this line and then via a loop-through to the OBD 2 socket. If you do not have an immobiliser (pre 1995 vehicles) this is connected directly to the OBD 2 socket.

6) Cruise Control Connector
Black 4 pin connector and green single pin connector
Pin 1 black -> igniton switched +12V supply,
Pin 2 blue/grey -> pin34 ECU,
Pin 3 red -> pin35 ECU,
Pin 4 black/white -> pin66 ECU,

if you retrofit cruise control, connect the cruise control harness to this connector and enable the ECU.

7) Fuel Consumption signal
Black 3 pin connector
Pin 1 purple/white -> pin9 ECU
Pin 2 black/white -> fusebox or lighting somewhere
Pin 3 green/black -> fusebox or lighting loom somewhere

This is connected to pin 9 of the ECU and is a PWM signal which is generated by the ECU based on the amount of fuel injected at any given instance. It is used in conjunction with the VSS (vehicle speed signal) by the high-end instrument clusters to calculate Miles-Per-Gallon. This wire can be omitted if you do not have an MFA (multifunction display) cluster, (or do not intend to install one in the future). When separating the lighting harness from the engine one you will need to cut the wires that lead to pins 2 and 3 of this connector. Note: this signal/connector may be missing in some donor vehicles, so don't be too-surprised if you can't find it!

** One important note here is that if your engine/wiring harness was sourced from an older vehicle (pre '95), there will also be an extra connector and sensor to look out for called a barometric pressure sensor, which lives in the cabin also. The sensor and connector are shown below.


Pic.11 Barometric sensor and wiring (photo and wire colour codes courtesy of golfgtioz)

Black 3 pin connector
Pin 1 green / purple -> pin41 ECU
Pin 2 brown / white -> ground -> pin33 ECU
Pin 3 green / red -> pin40 ECU

This sensor is used by the ECU to adjust fueling and EGR levels depending on the geographical altitude of the vehicle - i.e air is less dense at higher altitudes so fuel is adjusted accordingly. This sensor is built into later >'95 ECUs and should not concern you if your donor vehicle was manufactured in 1995 or afterwards.

So now that I have the necessary wiring sorted do I need to change anything else?


Yes, on the fusebox you will need to make the following changes:

1) Change the relay in position 12
Firstly you will need to change the relay in position 12 of the T4 fusebox from '104' to relay '103' that came with the Golf.

2) Add relay to position 3
You will also need to add the '109' relay (ECU +12V / "terminal 30" supply) to the empty position 3 of the T4 fusebox. See diagram below.


Pic.12 - Relay plate

This is the most important part of wiring for the 1.9 TDi. I will try to cover the remainder (minor modifications etc) when I finally get around to gathering all of the details together and try to find the relevant photos. Hope this is of help.


·
Registered
Joined
·
42 Posts
Your a god send!.I've finally started mine this weekend.I'm half way through removing the t4 engine having already stripped the golf's bits.The wiring was the main bit i wasn't looking forward toI:.Hope to read the second half of this post soon.T:


·
Registered
Joined
·
646 Posts
yet again matey you are a star. a vast wealth of knowledge helping all of us in some way or another and for this i personally thank you. A:A:A:A:A:A:T:

cheers jaz


·
Registered
Joined
·
154 Posts
This is really going to help me out as i have all i need for the conversion but it was already out of the donerA:A:A:


·
Registered
Joined
·
279 Posts
Awesome info.
My donor is here now and i'm gonna be stripping it down in the near future.
Does anyone know if the cruise control mod is as easy as that for the Mk4 golf - ie new stalk, loom and an ECU tweak with vag-com?

MTIA


·
Registered
Joined
·
1,821 Posts
Discussion Starter #11
Made sticky, i think a few people will be needing this in the future T:
Thanks for that T: Can I be cheeky and also point others at some more info in conjunction with this guide that may be useful for this particular conversion or be really cheeky I: and ask if it could be moved to technical articles (where I should have put it in the first place - sorry :)) Many thanks


·
Somebody stop me!
Joined
·
11,941 Posts
Just to clarify one thing here. I have heard that immobilisers can be a problem if they are fitted to the donor vehicle. Am i right in saying if there is an immobiliser it will be connected to plug 5 in picture 10 and then routed to the OBD (unsure what OBD abbreviation means). Surely its just a case of removing the immobiliser and running the wire directly to the OBD? Sounds simple, is it really that easy to bypass with the loom out?


·
Registered
Joined
·
1,821 Posts
Discussion Starter #13 (Edited)
Just to clarify one thing here. I have heard that immobilisers can be a problem if they are fitted to the donor vehicle. Am i right in saying if there is an immobiliser it will be connected to plug 5 in picture 10 and then routed to the OBD (unsure what OBD abbreviation means). Surely its just a case of removing the immobiliser and running the wire directly to the OBD? Sounds simple, is it really that easy to bypass with the loom out?
The immobiliser system isn't the problem usually, but installing it correctly in the van can be. When you get a donor vehicle you must also get the ECU, Immobiliser, and key to go with it. If you have all of these then there is no problem.

The ECU expects to receive a message from the immobiliser unit (which in-turn receives a message/identifier from the key) when you attempt to start the engine, if it doesn't then the vehicle will be immobilised. If you take away the immobiliser unit (as you suggest above) the ECU never receives the message from the immobiliser/key and so the vehicle remains immobilised (have a look at the immo thread for more detail and an explantion of how the immobiliser system works). So unless you have a specialist remove the immobiliser function from your ECU (~£70 - 100), you need the immobiliser ECU and key that came with the donor car. Oh and these three components are 'married' (adapted) to one another so a random key, immobiliser and ECU combination will not work either. This is the reason for my emphasis of the immobiliser guide in post #11 above - can it be moved to this section please?

OBD 2 = (On-board Diagnostic (Socket)) OBD 2 is a worldwide standard that all car manufacturers adhere since 1993/4 to which relates to the location and pinout of a 16-pin socket diagnostic socket which is standard across all manufacturers. It is required to be within 60cm of the steering wheel. SAE J1962 (ODB2 standard document) defines the pin out of the connector as folows:

1. Manufacturer discretion but used by GM mainly (GM J2411 GMLAN/SWC/Single-Wire CAN)
2. Bus +VE Line of (SAE-J1850 PWM and SAE-1850 VPW Another protocol used widely by GM)
3. Ford DCL(+) (Argentina, Brazil (pre OBD-II) 1997-2000, Usa, Europe, etc.)
4. Chassis ground
5. Signal ground
6. CAN+ (ISO 15765-4 and SAE-J2284)
7. K line of ISO 9141-2 and ISO 14230-4 This is the protocol that most (if not all) pre-CAN VW vehicles use
8. N/C
9. N/C
10. Bus -VE Line (SAE-J1850 PWM only (not SAE-1850 VPW))
11. Ford DCL(-) (Argentina, Brazil (pre OBD-II) 1997-2000, Usa, Europe, etc.)
12. N/C
13. N/C
14. CAN- (ISO 15765-4 and SAE-J2284)
15. LIN Bus (ISO 9141-2 and ISO 14230-4)
16. Battery voltage +VE

The assignment of unspecified pins is left up to the vehicle manufacturer.


·
Registered
Joined
·
1,055 Posts
i dont seem to have a fuel consumption plug in my loom. unless i got a bit happy and have some how manage to cut it off but after checking the bits i removed it all looks as it should.

but being as the golf was a 1998 i would have thought that it would have been there


·
Registered
Joined
·
73 Posts
Re: 1.9 TDi Wiring, barometric sensor

Does anyone have the part no for the barometric sensor.
I have a pre 95 loom but the sensor is missing.
Also can it be linked out so ecu thinks it is there


·
Registered
Joined
·
71 Posts
Could anyone help me, my 109 relay only fits upside done in the correct position in my fuse box! Also where does the fused glow plug connector fit? Cheers Matt.


·
Registered
Joined
·
190 Posts
https://fbcdn-sphotos-g-a.akamaihd.net/hphotos-ak-ash4/310776_10151558874997566_787085569_n.jpg feel like i am asking to have my homework marked here but these are the wires i have left over everything else seems ok. pretty sure the only one that matters is the brake input which would be the green connector with the black/red wire that connects to pin4 of the W connector (as in thread), the rest would just be for extras that i don't have or need as cruise control, etc? don't want any probs when the engine goes in so trying to get it all sorted now.
blue one in the background comes from the clocks and i believe it to be irrelevant?

do i get an A*, average C or a D-??


·
Registered
Joined
·
31 Posts
Hi Penbryn,
can you guide me through the Vagcom/VCDS scenario? The Ross-Tech seems an awful lot of money at £2-300. Do any of the far less expensive options offered on Amazon actually work? Some people seem to say they do, some say they are rubbish. You mention a reliable fault analyser; exactly what do you have in mind? Doing a T4 TDI conversion, so need something.
