It seems to be a common problem that the plastic pipe that goes from the MAF to the Turbo expands due to heat/oil on the end that connects to the turbo, allowing unmetered air through the intake, I bet the majority of 2.5's are like this.

If this part is replaced it will before long expand again and allow unmetered air back in.

I had a look at mine today and it was very loose!, you could clearly see there was no seal as the crankcase breather is close to the end of the pipe and there was a trace of oil past the O ring on the turbo and at the end of the pipe, as it was heat that caused it to expand in the first place we will use heat to our advantage and fix it.

To repair this you will need the following parts:

1x 10mm & 7mm socket, ratchet & screwdriver that can accept sockets.
1x Molegrips or spring clip removal tool.
1x Glass jug (Not the other halfs best cooking gear!)
1x Kettle.
1x 50mm Juilblee clip.
1x New O ring from VW that sits on the turbo to seal the plastic pipe (I didn't use one as mine was fine, so will update post with a part number)

First remove the flexible pipe from the MAF to the plastic pipe by using a pair of molegrips to squeeze the spring clip or use a spring clip removal tool, I removed the pipe on the MAF and on the plastic pipe to gain more room.

Once that is out of the way remove the crankcase breather pipe from the top right of the plastic pipe and also remove the vacuum pipe behind it.

Have a feel of the plastic pipe and see if there is side to side/up and down movement, I bet it moves a fair bit!.

Going back to the front of the plastic pipe there is a 10mm bolt that holds the pipe and dipstick to the engine, remove this with a small 10mm socket, I used a bendy adaptor as it's a tight fit.

Once this is removed you can take the plastic pipe off the turbo, inspect rubber O ring and clean turbo/plastic pipe if needed.

Now go inside the house, fill your kettle up and set it to boil. While the kettle is boiling find a suitable container such as a glass bowl or jug, I used a pyrex measuring jug.

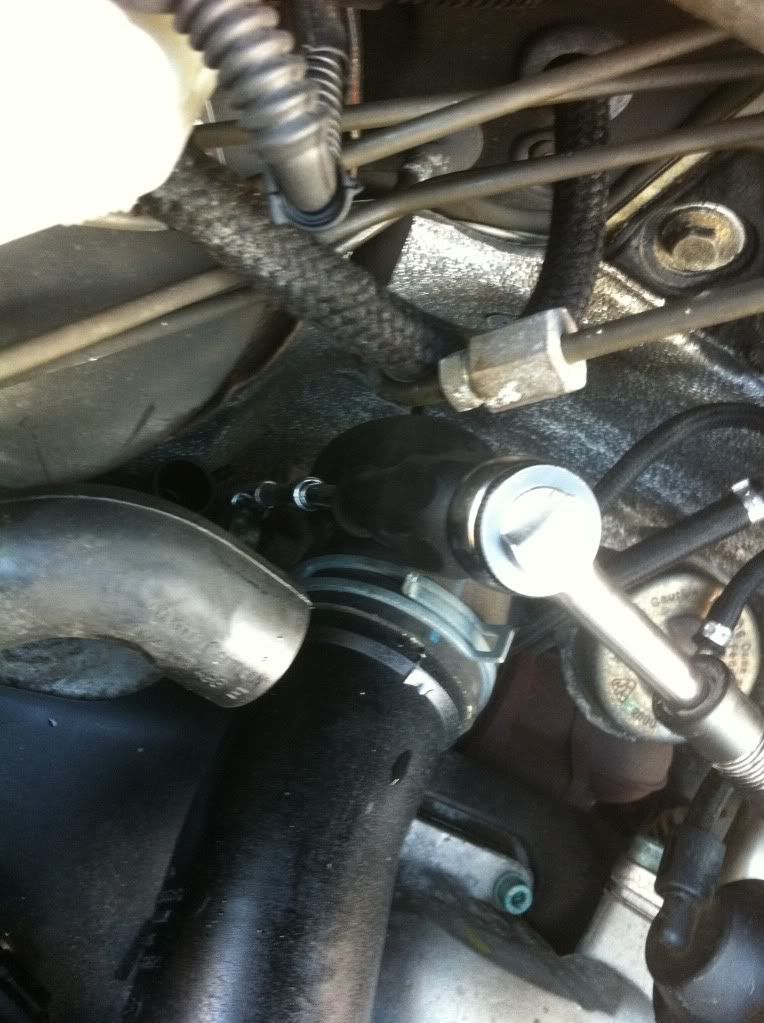

Put a 50mm jubilee clip on the end of the plastic pipe that connects to the turbo, make sure the 7mm bolt on the clip is facing the rear of the plastic pipe as per picture 1, nip it up slightly so it doesn't fall off but can't be moved if needed with a small bit of force

Once the kettle is boiled, fill the suitable container up with boiling hot water, never mind making a tea/coffee we don't have time just yet!.

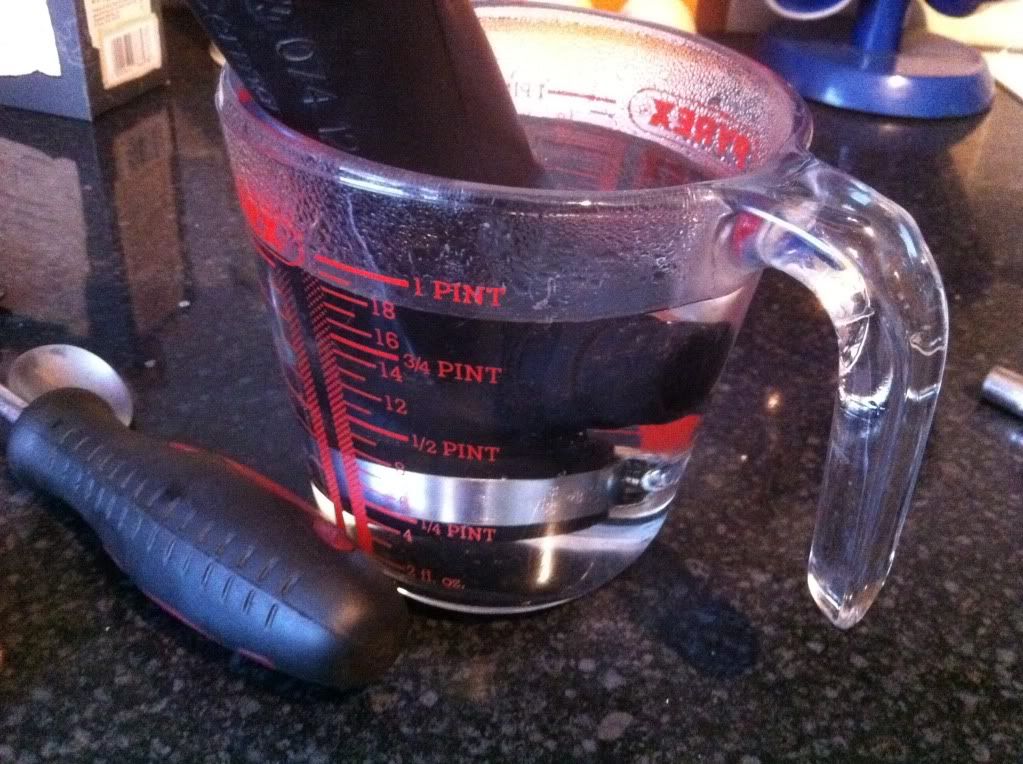

Submerge the plastic pipe with the jubilee clip in the hot water and take this outside, be carefull!!, the hot water will allow the plastic to become soft, once it's been in there for a minute or two, take the pipe off and quickly put it on the turbo, ideally you need to get the bolt that secures the plastic pipe/dipstick to the engine in loosely to align it, if you can't get it in or don't have an assistant use a skinny screwdriver to locate the holes for now and leave it there till you are ready to bolt it up.

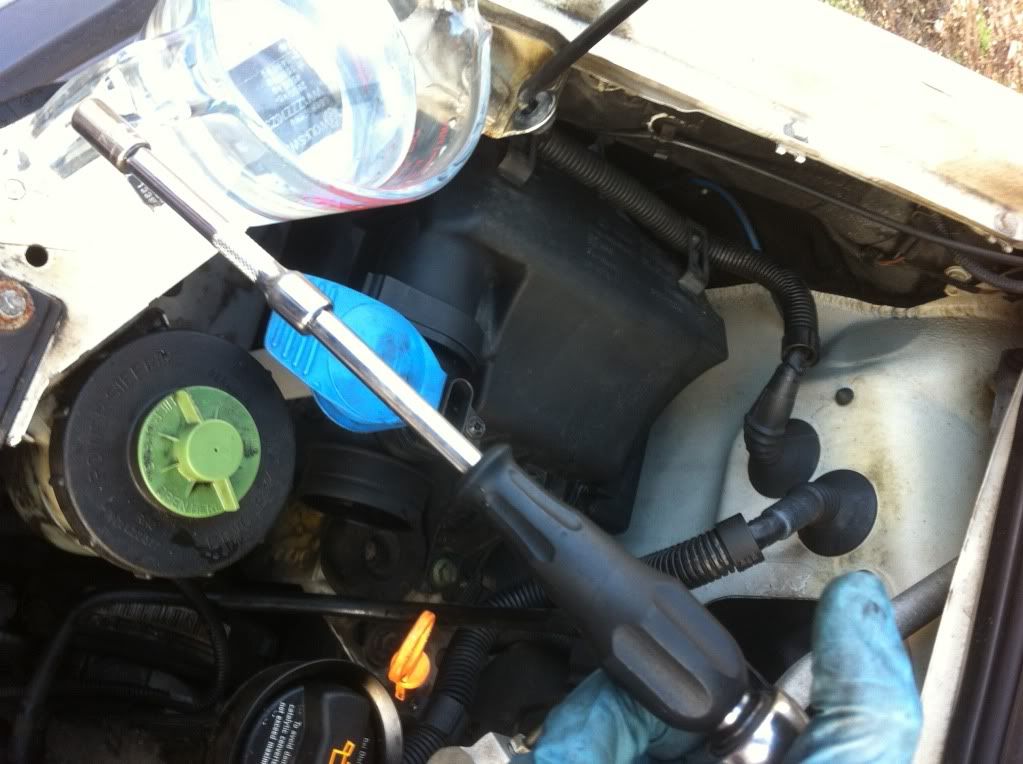

Once in place use a 7mm socket, extension bar and a screwdriver that takes sockets to tighten the jubilee clip, nip this up tight enough but do not overtighten it. The hot water allows the plastic to be plyable and the jubilee clip will shrink this down to the correct size, this should never expand with heat and work loose again!.

Connect the vacuum pipe up and then connect the crankcase breather hose back up.
Fit the pipe from the MAF to the Plastic pipe, put the metal clips back in the correct place.

Now you can make yourself a cuppa!






·
Premium Member
Joined
·
2,102 Posts
I just slide and extra o ring over the end of the turbo pipe. Nice snug fit and an idiot could do it.

:D

Nice how to tho..


·
Registered
Joined
·
1,656 Posts
Discussion Starter #3 (Edited)
I just slide and extra o ring over the end of the turbo pipe. Nice snug fit and an idiot could do it.

:D

Nice how to tho..
Cheers mate :)

Mine was looser than a ho's drawers, had a few O rings and bits of pipe here but it was far too loose to save, must have had at least 5mm play all round!.


·
Registered
Joined
·
1,656 Posts
Discussion Starter #7
Will have a look at mine later.

I am SURE I would have noticed if it was loose when I took the MAF off yesterday but you never know.

Will check in a bit, cheers for the head-up chap. T:
It wouldn't feel loose on the MAF end as the plastic pipe is bolted to the Engine along with the dipstick, have a feel of it on the left hand side of the turbo, make sure the engine isn't HOT though :).


·
Registered
Joined
·
1,123 Posts
I've this problem on mine - could this be the cause of my loud whistling turbo, as I've checked and secured all the other hose joints except this one.


·
07415125940
Joined
·
6,662 Posts
Brilliant post and very helpful to many.

Reads very well too,.

How do you tell when to stops tightening the clip ?


·
Registered
Joined
·
823 Posts
I just did this mod. You're tightening against metal so you can keep tightening I guess until just before the clip feels like it might fail. One thing I would add to this is that the next time you get the engine fully hot, you can go back and tighten the clip up a little more.


·
Registered
Joined
·
498 Posts
Bloody hell that video looks extreme!! Checked mine today and sure enough there is play! No where near as much as that vid mind!
Think a new o ring might sort mine. Just a thought, the turbo gets extremely hot and so its fair assume it will expand and contract. If the connections to it are either too tight or to rigid then this may stress the body of the turbo.

Just thinking out loud really but Vw design is push fit with o ring on inlet (pipe will naturally be suck towards turbo), and spring clip on pressure side. Both of these suggest expansion is expected!?


·
Registered
Joined
·
1,123 Posts
It's just a simple case of poor material choice for the pipe - it has too much memory and not enough elasticity, hence each time it expands, it doesn't quite contract eh same amount which through every heat cycle makes the problem a little worse.

I think mine is beyond saying and a new pipe and o-ring will be the best course of action.


·
Registered
Joined
·
1,123 Posts
Right then - lets try the old hot water trick.

The loose fit measurement...





On with a sturdy hose clamp, tightened fair old bit...





In to a jug of boiling water for 5 mins, removing it to tighten the jubilee clamp a few turns every 60 seconds...





After a quick 'quench' in a jug of cold water, it was out with the callipers again...





<grabs torch and flip flops and heads off outside>


·
Registered
Joined
·
1,123 Posts
And Voilà!

Fit's like a glove!





Bit late to be revving the nuts of it on the drive way, so I'll can look forward to my little test drive tomorrow night when I get home from work.


·
Registered
Joined
·
498 Posts
I just did this mod. You're tightening against metal so you can keep tightening I guess until just before the clip feels like it might fail. One thing I would add to this is that the next time you get the engine fully hot, you can go back and tighten the clip up a little more.
The reply above has confused me!! Just to clarify... Are we fitting the jubilee clip for good or just using the jubilee to reduce the diameter but refitting the plastic pipe as was?

If the latter than it won't be tightened against metal so what is the target inside diameter?

Thanks


·
Registered
Joined
·
1,123 Posts
The reply above has confused me!! Just to clarify... Are we fitting the jubilee clip for good or just using the jubilee to reduce the diameter but refitting the plastic pipe as was?

If the latter than it won't be tightened against metal so what is the target inside diameter?

Thanks
I put callipers across my turbo inlet and measured it at 48mm diameter.

However, the idea is that once you have it 'shrunk' back to the correct size, to leave the jubilee clip on there to prevent it stretching again for a more permanent repair.


·
Registered
Joined
·
823 Posts
No cracks in the pipe neither? You could try feeling around the back there without touching the hot to see if you can feel a draft. Or maybe a laptop with an external camera so you can have a good look back there.
