Thought this might help someone who's never done these before.

Ok now a disclaimer first of all; I am not a qualified mechanic and any advice offered here is to be taken at your own discretion. I will hold no liability or responsibility for what might happen if you choose to follow the following set of procedures.

Like I said, I'm not a mechanic but I feel that I have enough experience of this sort of thing to do my own, and have done on every vehicle I've ever owned. The brakes on the 2.5 TDi T4 which I am basing this on are as easy as any other vehicle's braking system. BUT if in doubt get a qualified mechanic to do it.

First the fronts:
Lift the bonnet and unscrew the brake fluid reservoire lid, but leave it loosely on top of the reservoire (it helps to keep any dirt from dropping in).

Start by making sure that the handbrake is on then jacking the front of the van up til the wheel is not quite off the ground, loosen all of the wheel bolts a half turn (or there abouts) now continue to jack the van up til the wheel is clear of the floor, remove the wheel bolts and remove the wheel. This is what you see...

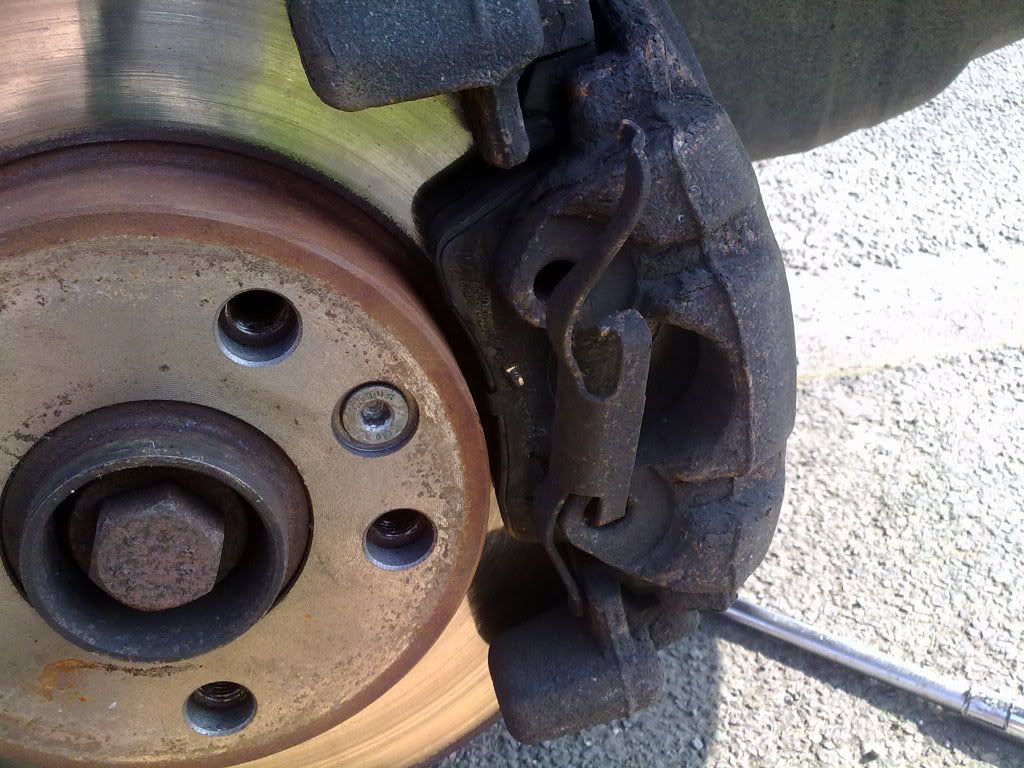

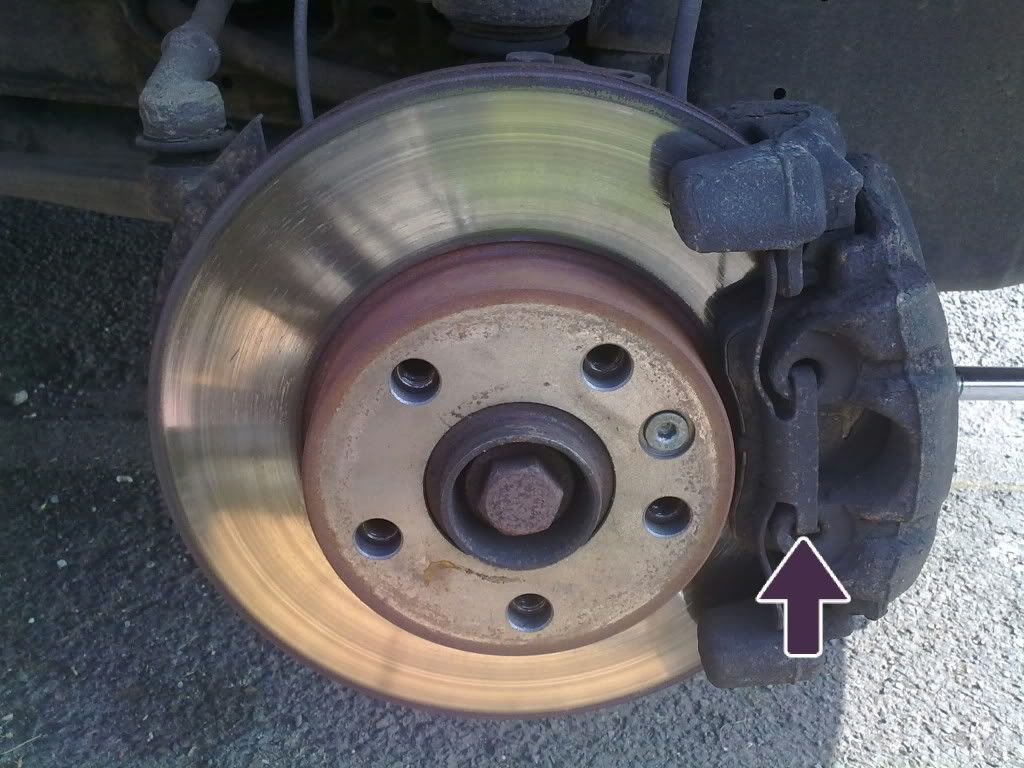

This is the front brake caliper and disc.

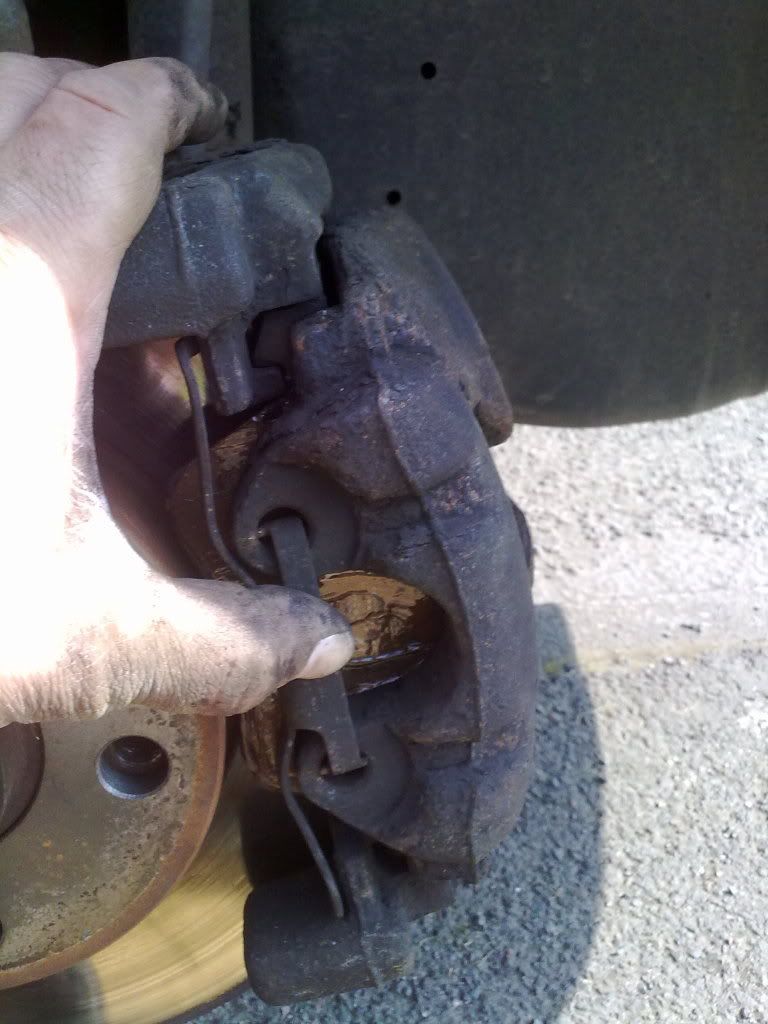

Start by prying the spring clip from the caliper,


put it somewhere safe.

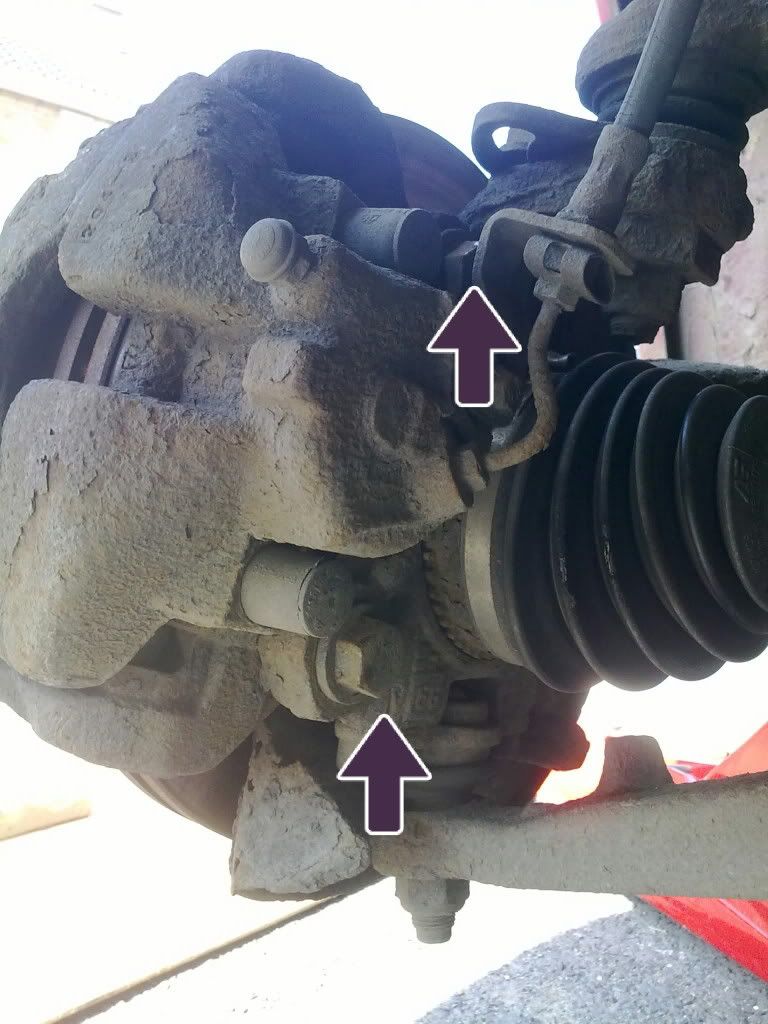

Look at the rear of the caliper and identify the two 21mm bolts that hold the caliper in place;

remove these. For this, it is likely that you'll need a good impact type socket and a breaker bar or length of scaffold pole. Oh, and some strength.

With these bolts removed, you can now start to work the caliper (complete with old pads) free of the disc, this sometimes results in swearing and grazed knuckles.


Once the claiper is free from the disc be careful not to twist, kink, bend, or stretch the rubber hydraulic hoses as if these rupture you'll be stuffed.
I place mine on top of a large plastic box placed inside the wheel arch.

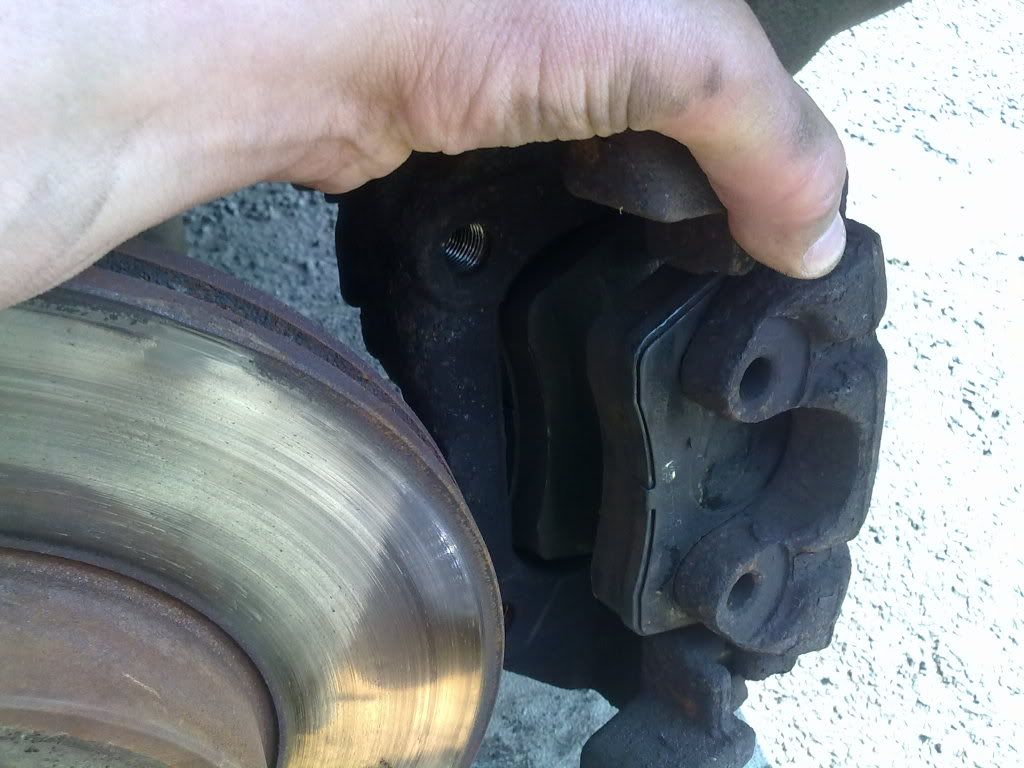

Remove the slider side pad by simply pushing it towards the piston side pad, this will push it out of its locating grooves.


With the slider side pad removed you can now remove the piston side pad, which is held onto the piston by spring clips which clip inside the piston. This usually needs to be pryed away with a screwdriver (be careful not to pinch the rubber dust seal).

Take your wind back tool if you have one and locate the end onto the piston screw the barrel part into position then place the plate into the locating groove and tighten it up.
This is a pic of the tool being used on the rear caliper but it works the same way on the front...

Give the tool a half turn at a time to allow the fluid in the system to settle (this lessens the risk of pushing fluid past the seals).

If you don't have a wind back tool a G clamp can be used with some care for the front calipers (not the rears though).

Once you have pushed the piston back far enough (pretty much all the way if you're renewing the pads) get your new pads and remove the anti squeal shims and put a coat of copper-slip on the BACK side of the pad, replace the shim then put another coat of copper slip on the outside of the shim. DO NOT GET ANY ON THE FRICTION SURFACE OF THE PAD as this will stop your brakes working.

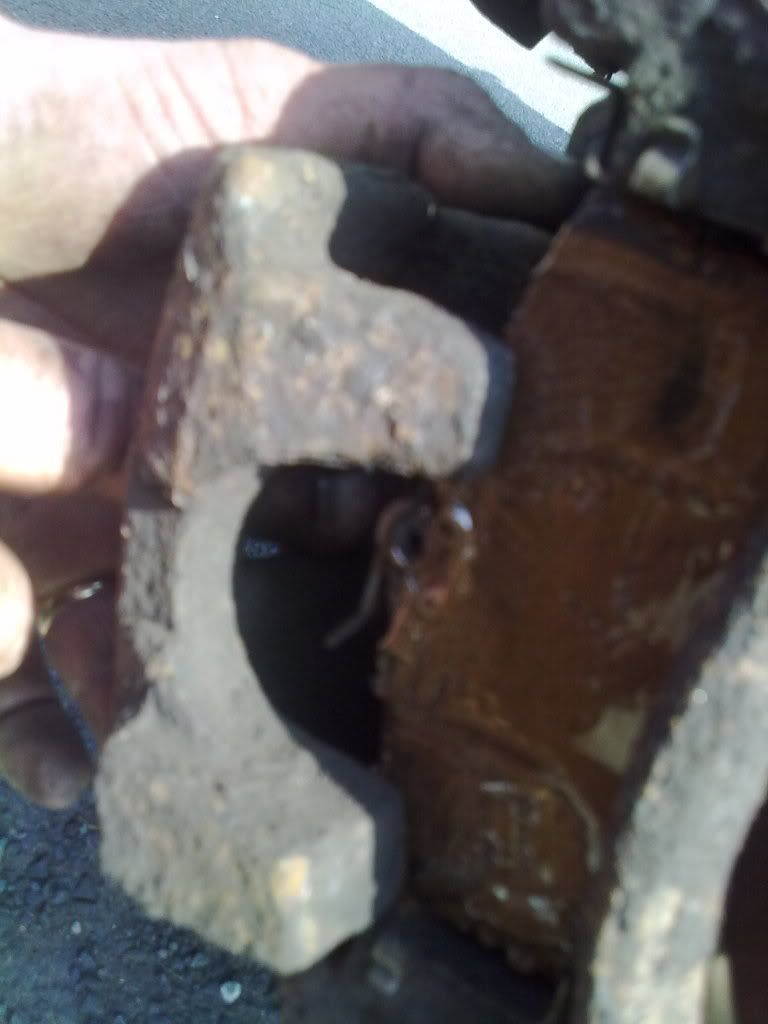

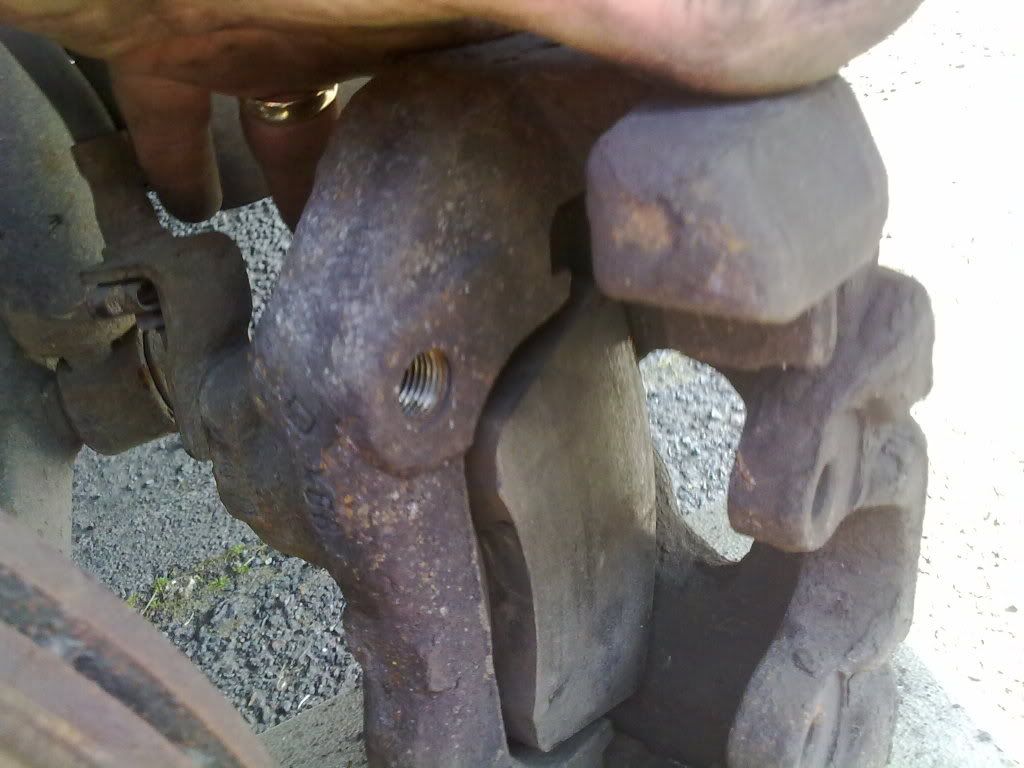

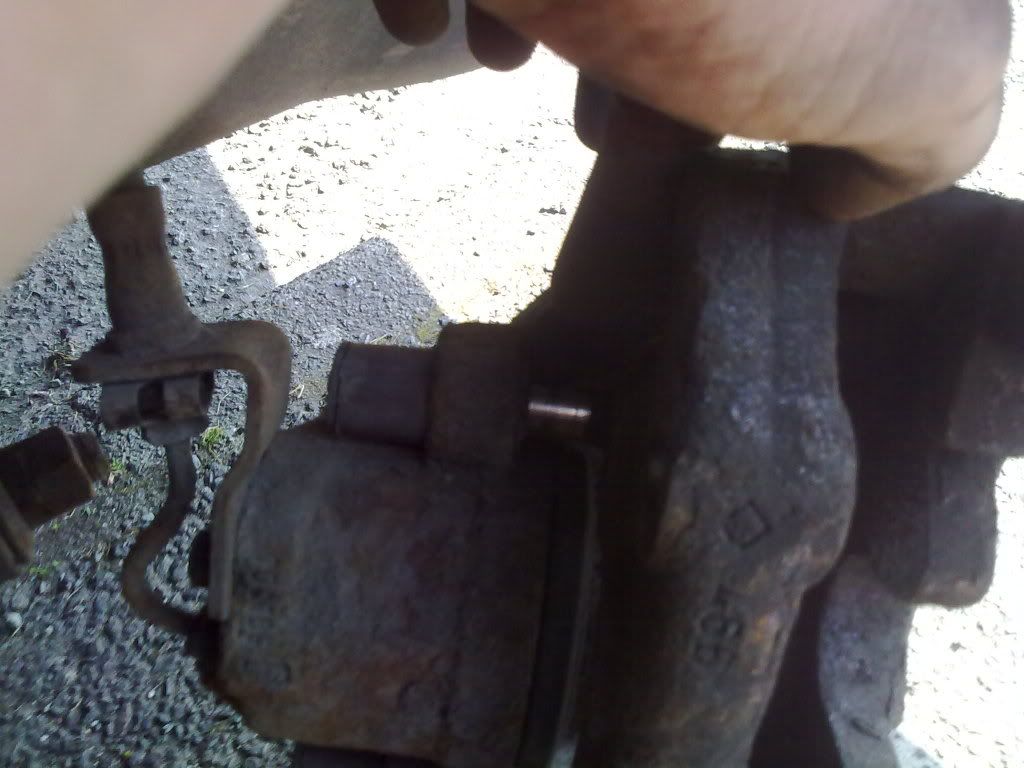

Hold your caliper and look at the rear side of it, if the slide is extended.. like this...

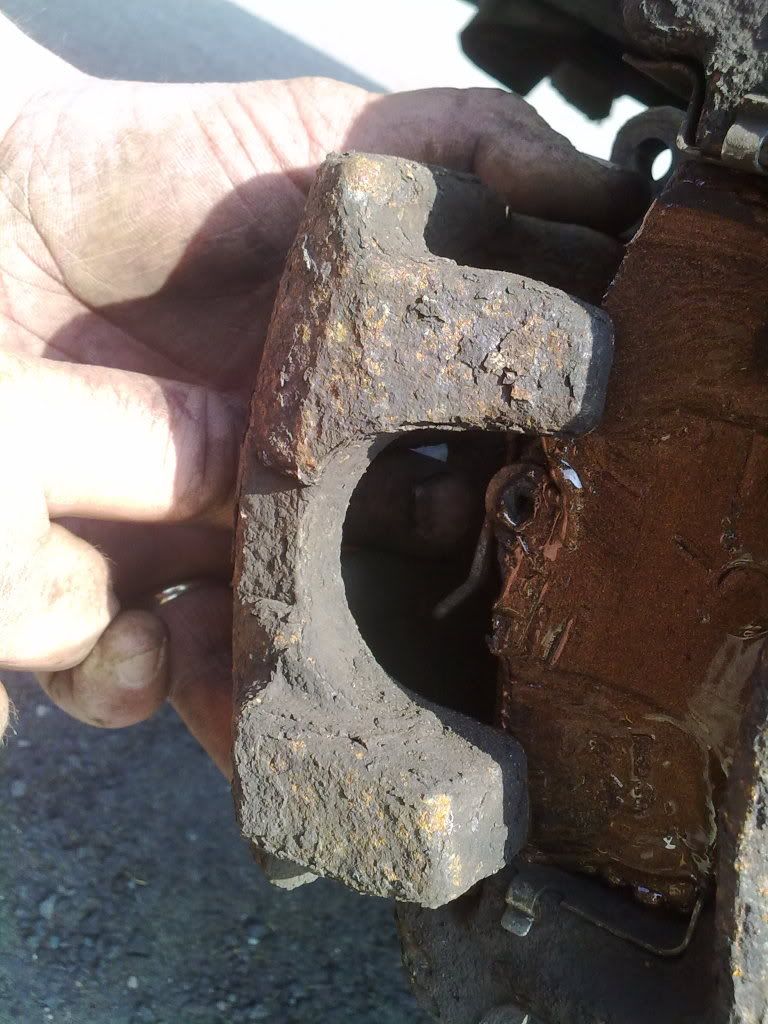

push it back in so it's like this...


now replace the new piston side pad and make sure that it's pushed fully into the piston so that the spring clips hold it there.



Now replace the new slider side pad.


You're now ready to replace the caliper with new pads back over the disc and replace the two 21mm bolts (put a dab of copper slip on the ends of the bolts too).



Once the bolts are done up tight (sorry don't know the correct torque setting) but make sure they're proper tight!!

Now replace the spring clip, line it up and just push it in the centre and ...ping! T:


Check you've tightened everything. Stick your foot on the brake pedal a couple of times till it firms up, check your brake fluid level, top up if necessary.
Put the wheel back on and do the other side..


Now the rears...

Jack up and support the rear of the van and remove the wheel in the same way as the fronts. This time though it is essential to make sure you have chocked the front wheels and that you're working on level ground as you are going to be working without the handbrake on. It's also a good idea to put the van in gear.
Take the handbrake off.

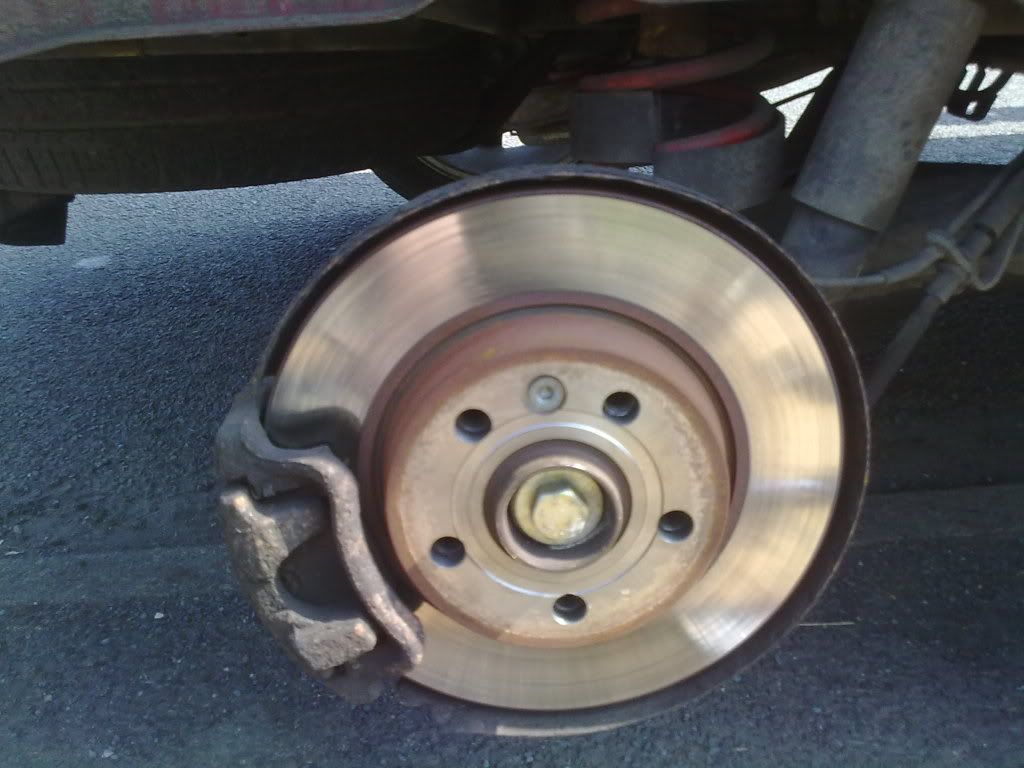

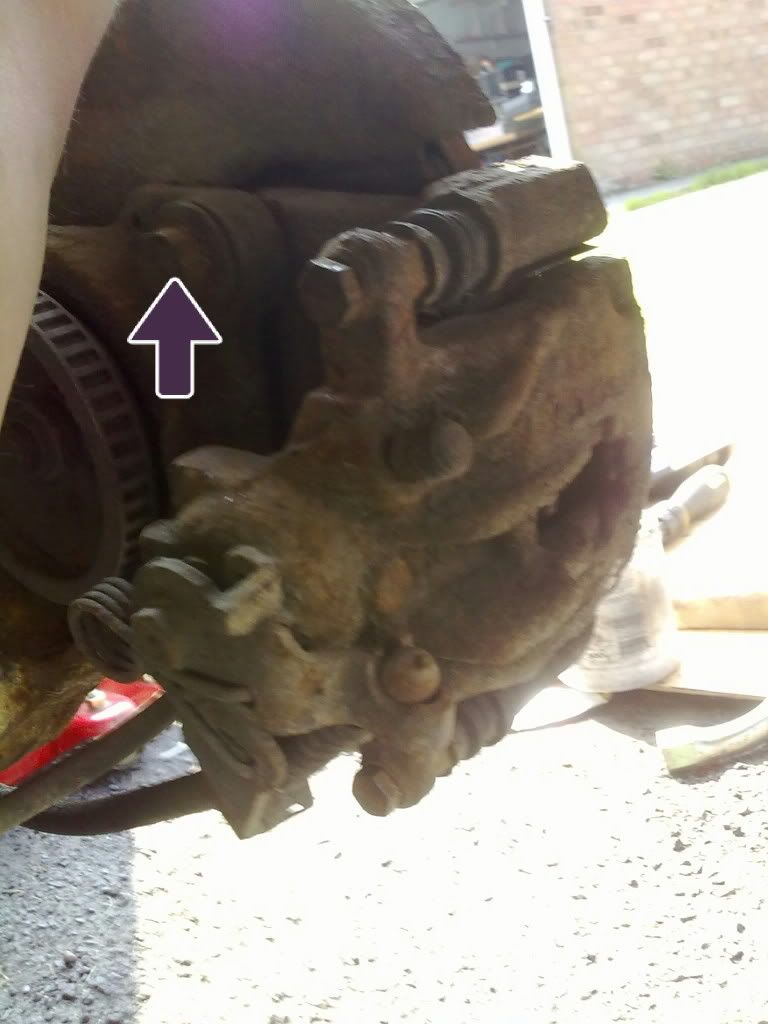

This is what you see with the wheel removed...

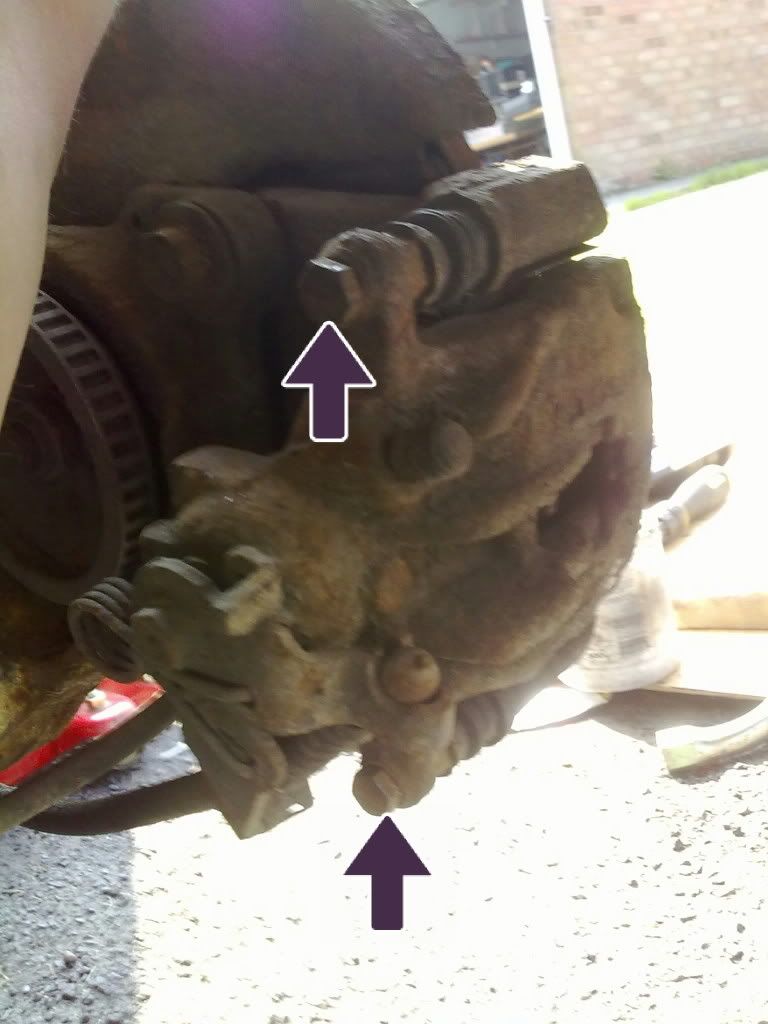

Look at the back of the caliper and locate these two 13mm bolts

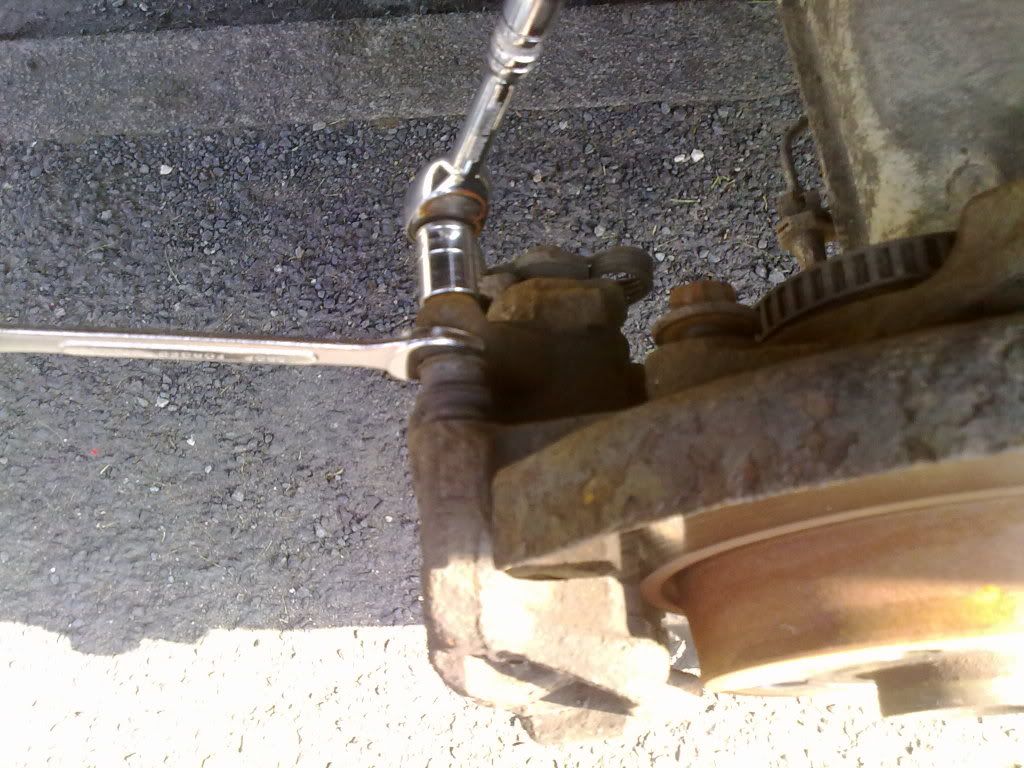

Just behind these there are two nuts which are attached to the rubber boot things, hold this nut still with an open ended 15mm spanner and undo the 13mm bolt and remove, repeat for the other one.

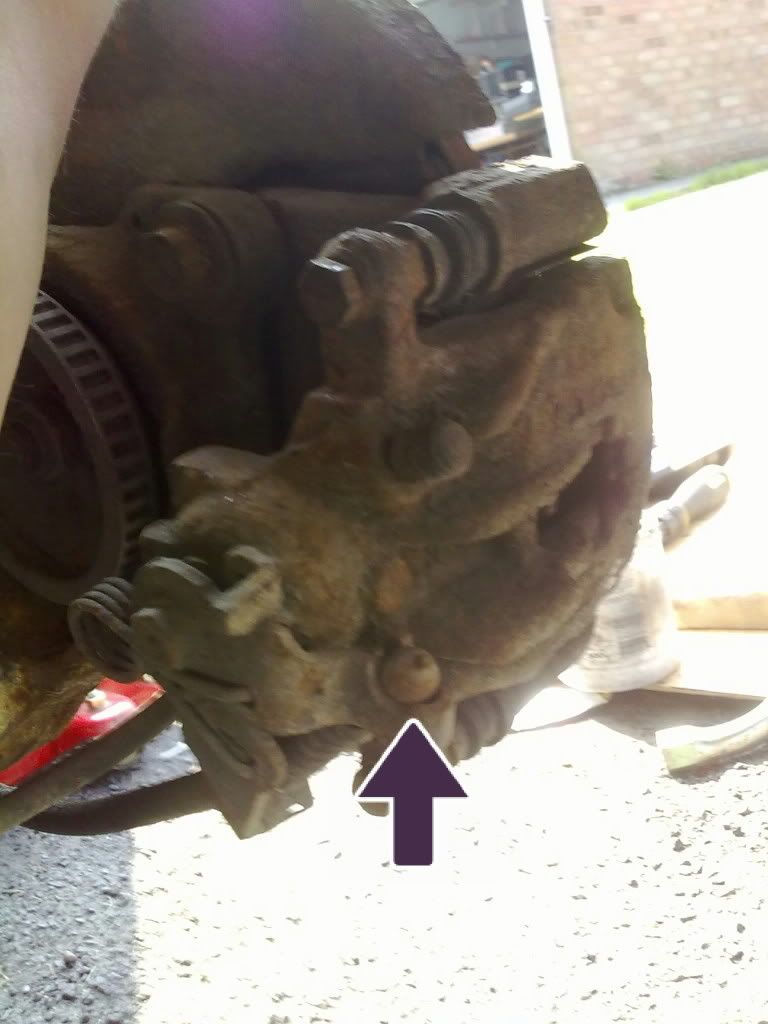

Once you have these removed remove the handbrake cable end by levering out of its locator..



This should allow the caliper assembly to pull out (rearwards) leaving the old pads in the retainer on the disc.

Again be careful here not to twist, kink, bend or stretch those hydraulic hoses, do not leave the caliper hanging on the hoses; NOT GOOD!!!

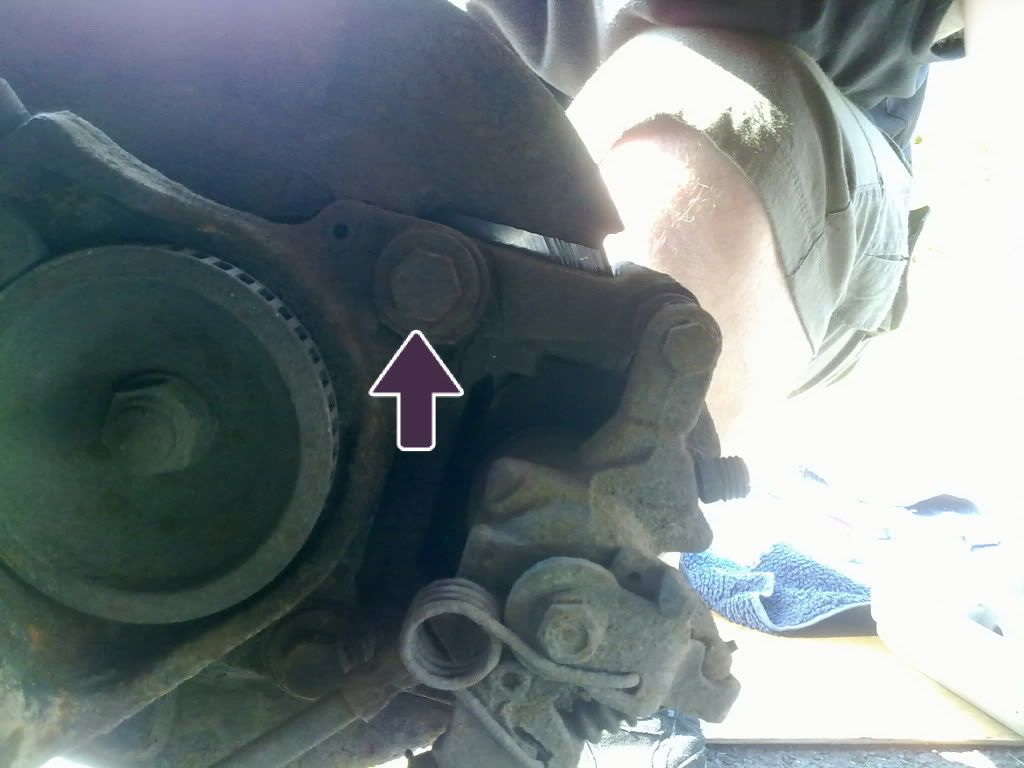

If the caliper doesn't want to move from the disc, loosen the top 18mm bolt a turn or two.

To do this you will need a good 18mm 1/2" drive socket, a breaker bar, a scaffold pole and some biceps.


With this bolt loosened it should give enough to wriggle the caliper out.



Pull the old pads off the retaining clips. Get your new pads and coat the backs and shims with copper slip as per the fronts, being very careful not to get any on the friction surface of the pads or the disc.
Take the windback tool and put it together as before...

and wind the piston in as before, half a turn at a time until it's fully retracted.

Now locate the new pads into the springy locating clips (on the pad retainer part of the caliper, still attached by the disc) so that the friction side is against the disc (obviously? read what happened last time I replaced mine in the dark), don't expect these springy clips to hold the pads there; you'll need to keep a couple of fingers there as well for a minute.
Start to push the caliper over the pads until it is in position.

Now do the 18mm top caliper bolt up nice and tight.


Now locate the bottom 13mm bolt first, you'll need to pull the caliper up a bit to get this lined up, again holding the 15mm nut still with the open ended spanner, do it half up then replace the top 13mm bolt in the same way. Now fully tighten both bolts and recheck the 18mm one at the back of the caliper.
Once this is done replace the handbrake cable in the locator on the lever arm.
Go to the cab and press the foot brake a couple of times til it firms up, then as before check the brake fluid level and top up if necessary.

Replace the wheel and do the other side.

Hope this has been of some help to someone, it's not a big job and I've got it down to about 20 minutes a corner now.
Any questions please ask or if you feel I've left anything out please add.

Oh, Copper slip rules!!! If your pads come with a sachet of nice blue gluey stuff, chuck it and use the old copper slip instead. No more squeally brakes. Hoorah! :D


·
Registered
Joined
·
42 Posts
Excellent guide A: that's as straightforward as it gets.

Just one question - the wind back tool... who makes it and where do you get it from?


·
Registered
Joined
·
2,073 Posts
Discussion Starter #3
Cheers buddy! T:
That's a Laser wind back tool, from Halfords and about 20 quid. Makes the job dead easy.


·
Registered
Joined
·
2,073 Posts
Discussion Starter #5
Wire brush carriers - or at least part pads sit into - like a madman.
Also give the Slider pins a ggod ole clean- some say yes to coppa grease-some say no. If they are clean and rubbers in good nick -all is good
Good one, couldn't find my wire brush today or I would've painted the calipers too.


·
Registered
Joined
·
1,573 Posts
I don't want to be the Health and Safety Police, but you really want to use some axle stands if you're doing jobs like this. These vans are deceptively heavy, especially on the front end!

But a good guide though, and thanks for putting it up! T:


·
Registered
Joined
·
97 Posts
anyone tell me which way the rear pistons have to be turned to get them back in? im sure i read somewhere that some cars have to be turned clockwise and some anticlockwise?
i dont wanna turn it the wrong way and bust a caliper or do a seal
many thanks john

thanks for taking the time to do a great step by step guide and including pics awsome post mate


·
Registered
Joined
·
679 Posts
did mine both clockwise on lucas calipers, do it slowly though with top off the resevior in the enginge bay


·
Registered
Joined
·
1,573 Posts
anyone tell me which way the rear pistons have to be turned to get them back in? im sure i read somewhere that some cars have to be turned clockwise and some anticlockwise?
i dont wanna turn it the wrong way and bust a caliper or do a seal
many thanks john

thanks for taking the time to do a great step by step guide and including pics awsome post mate
They have to be turned as they are on a screw thread. It's all to do with the self-adjusting mechanism for the handbrake.


·
Registered
Joined
·
138 Posts
Thanks Wavestarved

- I'm a complete novice at doing anything like this and your guide and photos were invaluable - particularly the one with the scaffolding pole on the 21mm bolt !!!

I had to take the whole caliper off cos I was also replacing the front discs.

I reckon I've saved myself over a hundred quid and I'm walking round the house with a smug look on my face !

Thnks again A:


·
Registered
Joined
·
2,073 Posts
Discussion Starter #14
Thanks Wavestarved

- I'm a complete novice at doing anything like this and your guide and photos were invaluable - particularly the one with the scaffolding pole on the 21mm bolt !!!

I had to take the whole caliper off cos I was also replacing the front discs.

I reckon I've saved myself over a hundred quid and I'm walking round the house with a smug look on my face !

Thnks again A:
Glad to be of some help at last! LOL:


·
Registered
Joined
·
2,073 Posts
Discussion Starter #16
anyone tell me which way the rear pistons have to be turned to get them back in? im sure i read somewhere that some cars have to be turned clockwise and some anticlockwise?
i dont wanna turn it the wrong way and bust a caliper or do a seal
many thanks john

thanks for taking the time to do a great step by step guide and including pics awsome post mate

Cheers buddy, if I remember right it's clockwise but don't worry if you turn it the wrong way the tool will just go limp and fall out (Fnar fnar) LOL: No chance of doing any damage by turning the wrong way. Just take it half a turn at a time wait a few seconds another half turn- few seconds- half a turn etc, and loosen the reservoire cap before you start winding in.
Best of luck


·
Registered
Joined
·
659 Posts
yep it defo clockwise, worth noting some pads come with a little rubbery plate on the back, its an anti squeal shim and means you dont need to bother with copper slip, did mine yesterday with new discs and pads, painted the calipers too just for good measure- silver smoothrite looks lovely through the wheels, did the fronts a few months ago and they still look clean and shiny no matter how hot they get.


·
Premium Member
Joined
·
910 Posts
Mods, is it worth sticking this in the 'technical articles' area? Its one of the best brake guides on the forum. T:


·
Registered
Joined
·
1,716 Posts
Great How to thread.. this needs to be stickied.
If you need to find out what type your brake pads pop your head down the footwell and do a headstand.
Underneath the fuse box is a white label with a load of codes on. Thanks to Racing snake who provided the caliper list for each code is as follows......

1LU = 15" Wheels. Floating caliper FN3/57 ITT
1LP = 15" Wheels. Floating caliper Lucas C54
1LE = 15" Wheels. Floating frame caliper Lucas RC 54
1LB = 16" Wheels. Floating caliper FN3/57 ITT

From this its easy to work out what brake pads are required for your caliper.
