Well here goes, ill try and document as much info as i can on my conversion.....

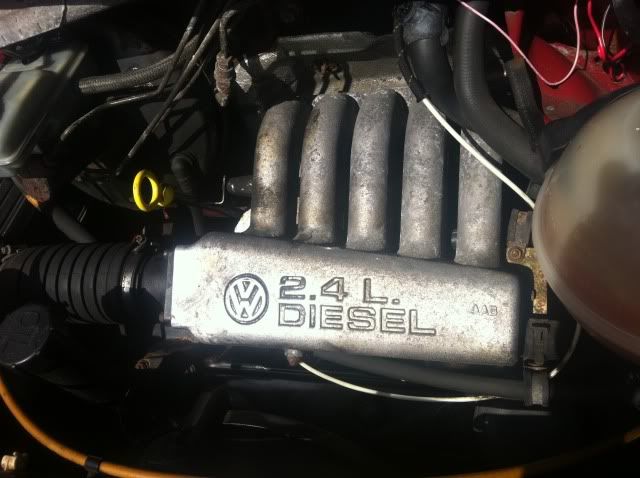

Here's what we started with...
I started to gather the bits..

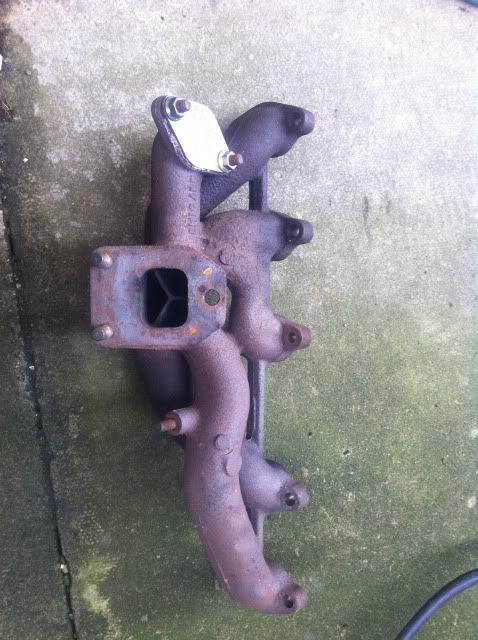

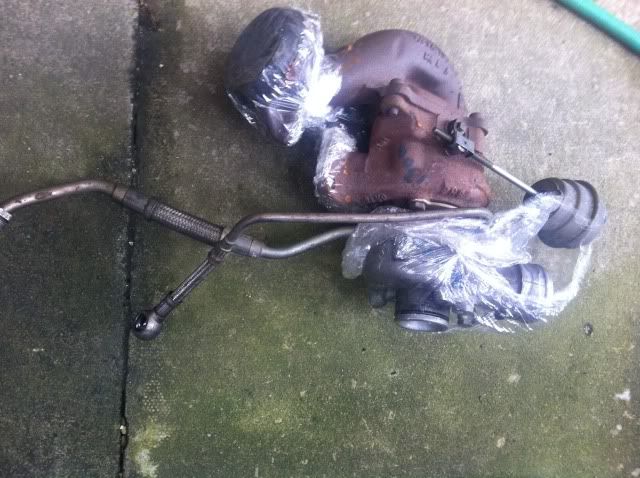

Turbo and manifold off 2.5TDI ACV
EGR blank fitted

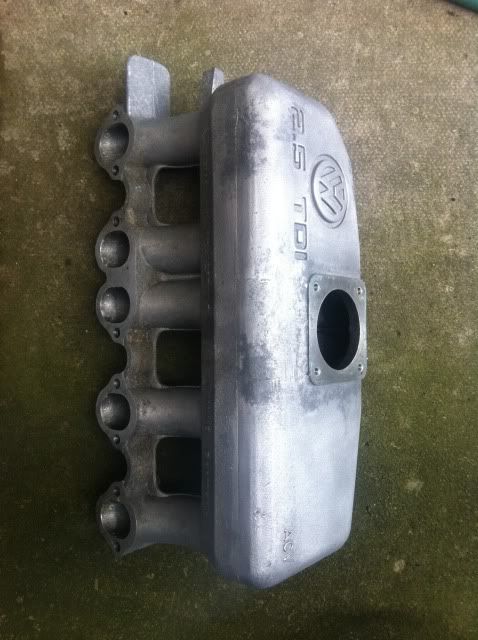

Inlet manifold off 2.5TDI ACV

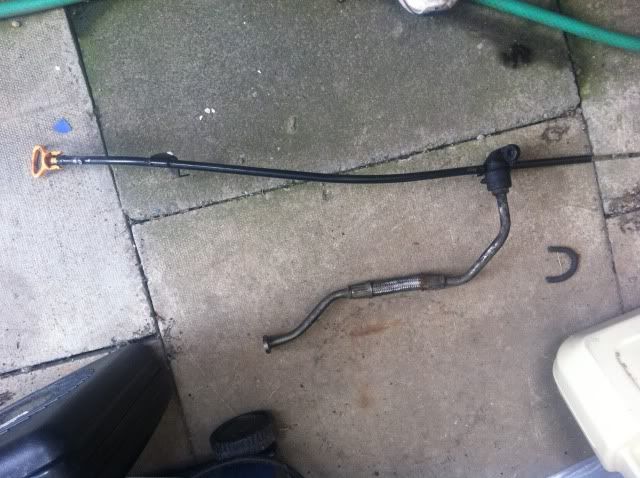

Dipstick tube off 2.5TDI ACV
oil feed and return pipes off 2.5TDI ACV

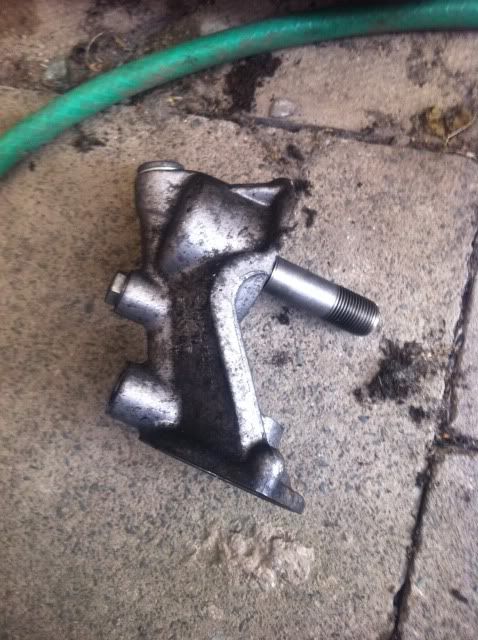

Oil filter housing, i actually used my exsisting housind and just removed the blanking plug.

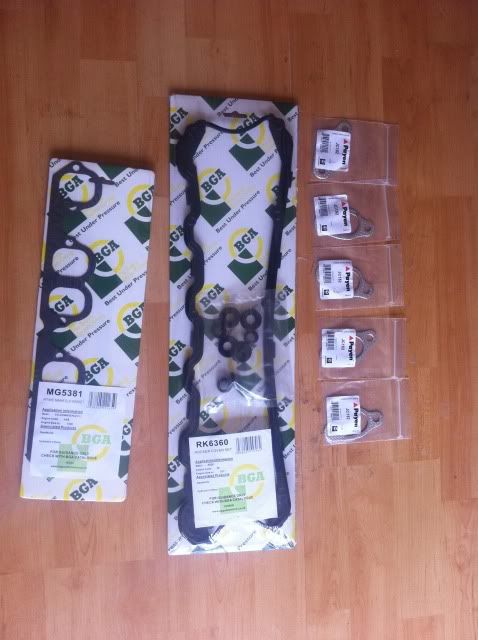

Gaskets
Ignore the rocker box gasket, only needed inlet and exhaust gaskets...
Then we started...

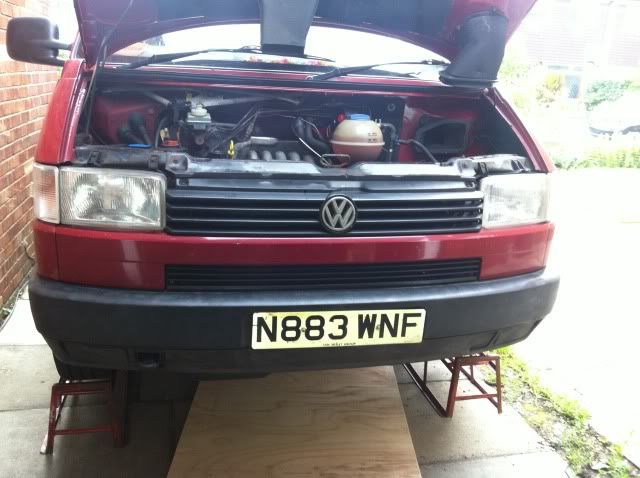

up onto the ramps...
Front panel off and radiator into service mode...
i removed the exhaust for ease of access...
have fun with these lol

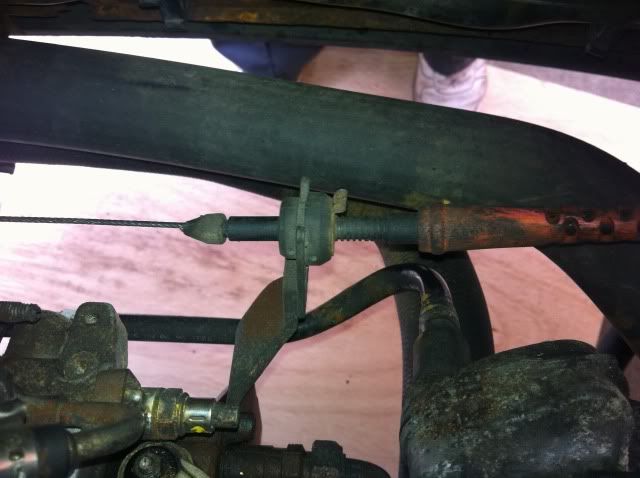

I checked my throttle cable first for play...
i pulled back the cable to remove the slack lol

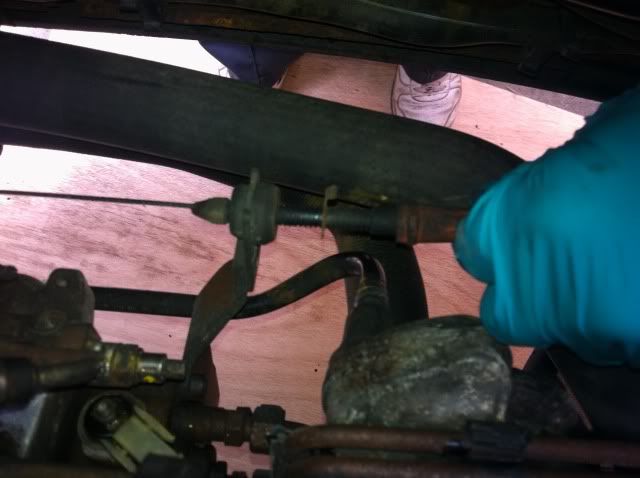

just pull off the clip and move it forward against the stop..
Inlet manifold off....GoGo Gadget arms are ideal for this job, as would some cartoon eyeballs so you could stick em round the back to see..

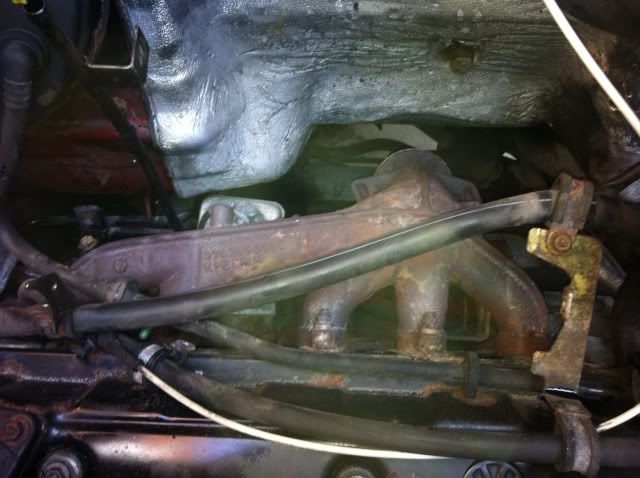

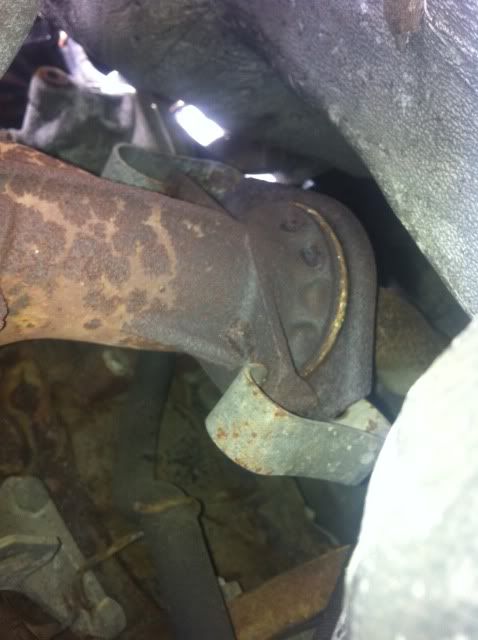

This made access to the exhaust manifold easy...
Next was to remove the dipstick tube to fit the replacement ACV one with oil return..

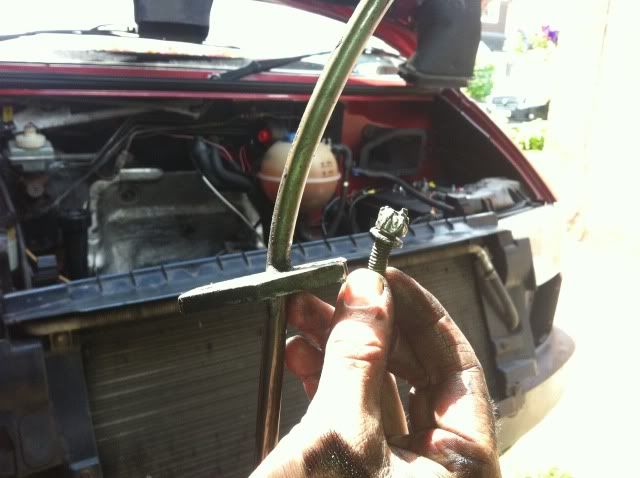

This was the worst part took 3hrs to get this bugger out....
I ended up removing the oil filter and cooler out the way to get at it...
New tube in place..

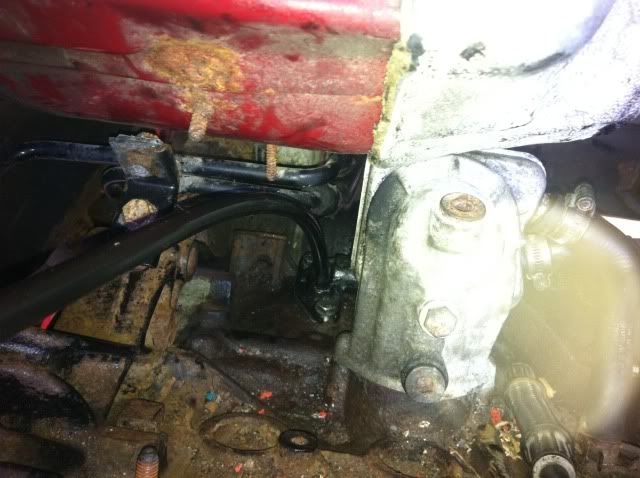

I was lucky in the fact alls i needed to do was remove the blanking plug from the housing inorder to fit oil feed pipe...

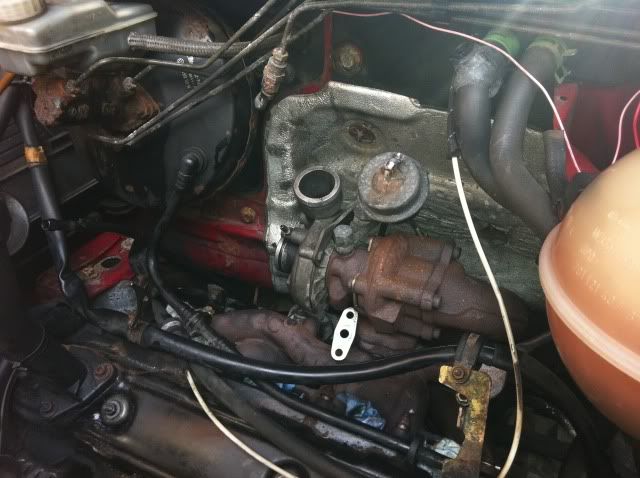

Then literally, bolted up the manifold and turbo...
Then came the inlet manifold..Socket Drive Allen keys ideal for this....

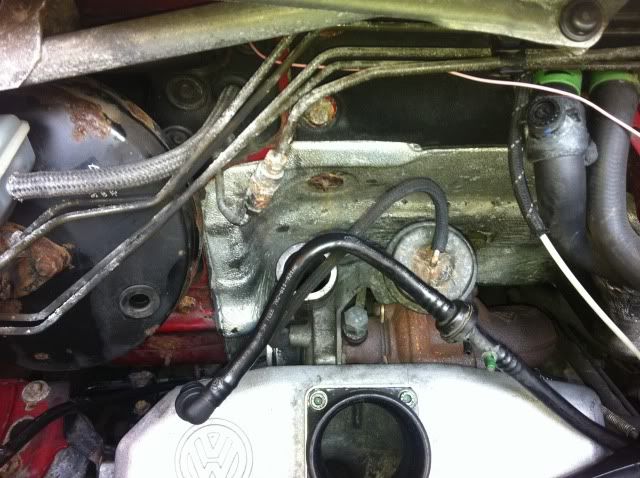

As you can see i fitted the inlet stub off the aab manifold as a temporary fix..
I opted to make a new inlet stub...

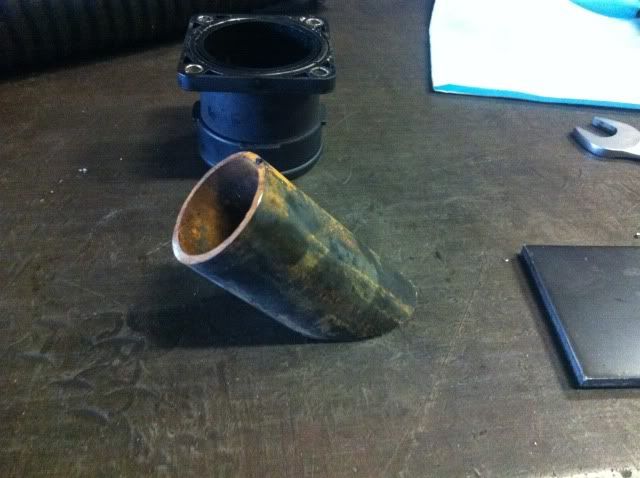

Some 1/4 plate and 2" pipe cut at 45 DEG angle..

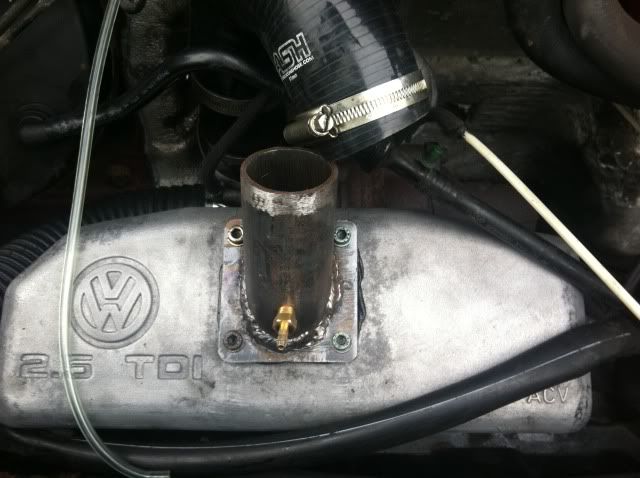

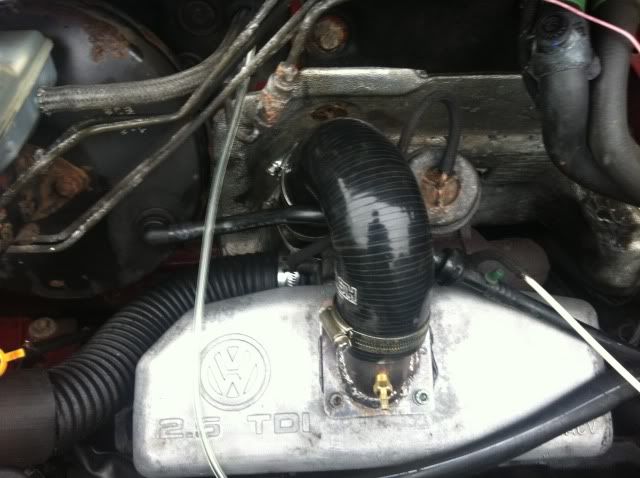

All welded up and tapped into for boost gauge feed...

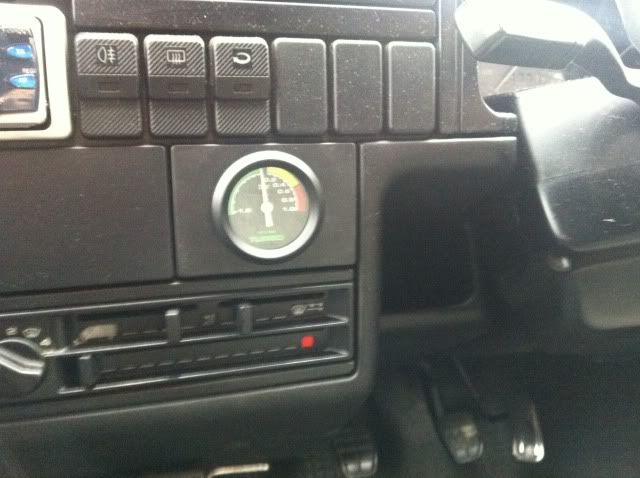

I went for a 1Bar gauge as its no race car lol..
135deg 51mm hose and about 3" of 51mm hose to connect up boost and some flexible ducting for air intake...
When all was plumbed in and running it was only showing .15 bar, i have to wind the adjustment up on the actuator arm a fair bit by removing the retaining clip backing off the top nut a few threads then locking it up again with the bottom nut and increased the max fuel screw in the region of half turn after you have removed the tamperproof crimp, back off the 13mm lock nut turn fuel screw CW for more fuel....
Over the course of the weekend, mixed in with work and a trip to A&E spent around 12 hrs doing the job start to finish....
Now its running some observations....
temp on normal driving was marginally higher than 1/2, sat at 80MPH it creeps up to 3/4, economy around the same 30/35 mpg...
Opted to modify the plastic air duct on the bonnet and refit as it chaffed the boost hose, and have also removed the 'wax' switch that operates the fan blinds and set them open which has reduced overall temp...
As a short term fix i have also added some wire wool to the rocker breather to reduce the oil residue blown out of the pipe....
Thanks to whooshwhoosh for his assistance, 4motion for the parts and JonT4 for the advice.....
So in all what would this cost inc labour do you reckon?
I fancy having mine done but at the mo the vans a workhorse and has to run 100%.
If I get another van and convert the old bus to a camper I wouldn't mind giving this a go!T:
Parts wise, all in stands me at £300, thats turbo, gaskets, hoses and boost gauge...not sure what a garage would charge to do it, but mine is daily driver too, i started mine friday afternoon, had to work sat/sun morning so used wifes car for that and just cracked on when i got in, if i had worked later of evening could have sorted it by saturday night....
Renamed and moved to Technical Articles T:T:T: IMHO You might need to spell out things a bit better on the turbo adjustment side and perhaps give a guide to the max boost you can set it at, just so others know how to do the finer points not just the spannering part.
Added to the adjustment, ill try and get some pics, with regards setting up and 'max' figures i have no idea lol.. im currently around 0.6 bar which ill keep it there until FMIC is fitted...
Good job that man! T:
This 2.4D turboing thing is becoming popular (and for good reason). It makes the van alot more fun to drive for not alot of money.
Renamed and moved to Technical Articles T:T:T: IMHO You might need to spell out things a bit better on the turbo adjustment side and perhaps give a guide to the max boost you can set it at, just so others know how to do the finer points not just the spannering part.
gonna miss hurtling past u uphill
toolwise,allenkey sockets were a big help,used these round back of manifold.the 135 degree bend for inlet needs to be longer on one side too,so a length o straight pipe n connector needed too.
a boost gauge also a must,or u have no idea if things working as they should.
top job pal!A:
Just wanna say looks like a good guide good tune, and you made it sound easy?! I wanna do it!
Cos of noobs (me) could you list pn's u used, or maybe rough part name what it was recycled from? Ie the turbo you got, ie the ones we could use for this job etc T:
Performance wise, hows it goin? Whats the noticeable difference? Do you have a rev counter, has this given a clue on whats goin on, ie whens it kickin in etc, and economy, hows it goin? Think them answers may just force me to try it! A:
Engine temperature is only marginally higher, talking the width of the needle....no noticeable smoke on idle or boost, my tweeking is over until i get the intercooler fitted then look at the LDA for the pump..got a little oil mist from rockercover breather as its currently venting to air now, just need to re-pipe it away from engine, JonT4 has a catchtank fitted as an option...
Cant comment on economy as im currently having fun watching the boost gauge A: lol, but it gets its first big run in a few hours to Nant Col.....
here are the specific part numbers but you can get everything second hand from a 2.5acv engined van
firstly you need a acv turbo and manifolds defiantly second hand or reconditioned, prohibitively expensive new
if you cannot get the rest of the parts second hand you will then need
dipstick tube :-074115630N
dipstick gasket :-035145757C
oil feed pipe :-074145771C
upper oil pipe seals x2 :-N0138123
top nut for oil pipe :-N0110691
banjo bolt :-1J0422269B may be alternative?
lower oil feed seals x2 :- N138487
oil drain pipe :- 074145735
turbo to pipe gasket :-046145757A
turbo to pipe bolts x2 :- N90129001
intake gasket :-074129717
exhaust gasket x5 :-028129589B
if you are doing the head gasket at the same time
part numbers are
Head gasket thickest steel available :-074103383P
Head bolts :- 068103384A
you will also need a pulley stretch bolt (3 different types so you will need to get the right one) as you will need to remove the cam belt to do the head gasket
hi all , im just in the middle of doing my turbo convertion (finally)
all stripped down , dip stick in and oil return pipe in ,now my question is which plug on the oil cooler stand do you use as there is three , 2x 8mm allen and one in the middle (which in my case has an oil pressure gauge in )
ive tried the plug nearest the block and the hole is too big for the oil feed bolt ?
please any help would be great as i use my van most days :*
