Discussion Starter · #1 ·
Jimmyjames add me to the list please.....


So it began i was driving home from work the other night stopped at a level crossing as i went to set off the old 1.9td didnt sound to clever, so i drove as far as i dare then got a mate to tow me home.

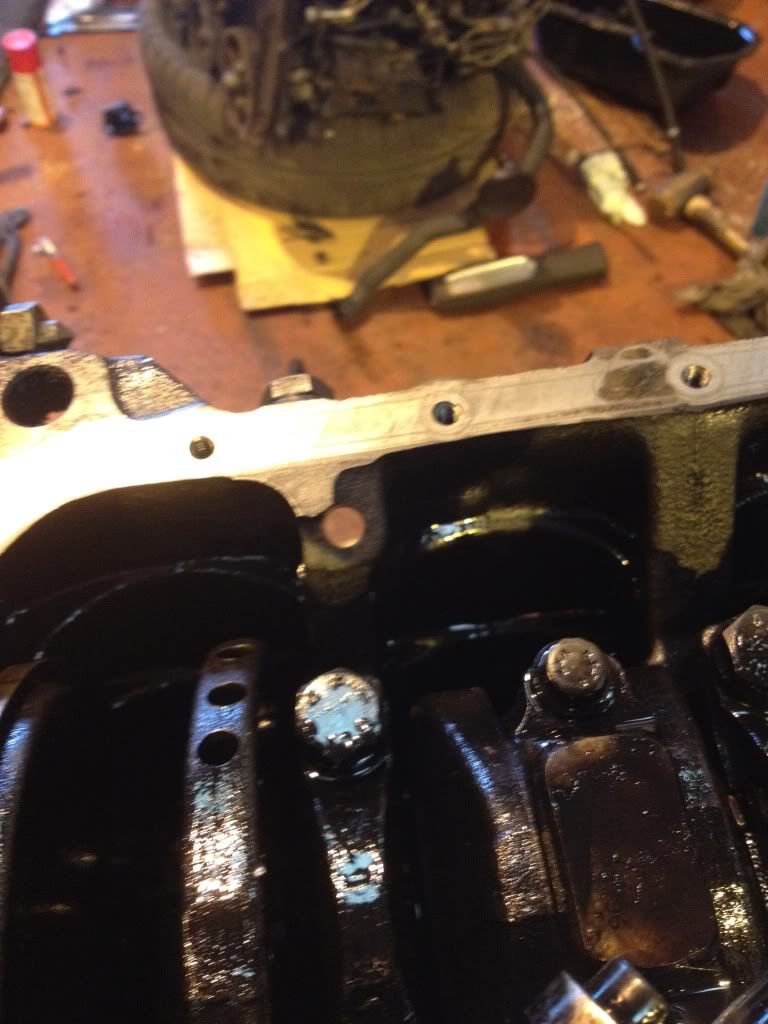

stripped it down the next day and found the crank pulley had begun to spin on the crank, :eek:

so had a ten second think and started looking for a TDI transplant, :D found a 1996 golf 80k on the clock with history a nice AHU lump and just had a new MOT (i felt a little guilty for what i was about to do to the golf)

i read and re read all the threads on this fine site and only due to the masterclass of aggie and the indepth wiring write
up from penbryn and info from all the other people that have done this conversion in 6 days i am now running tdi power so i thank everyone who has posted a thread.

and i must say i am impressed A:A:A:A:

as a whole the conversion is not that bad just the longest part for me was swopping all the kit off the ABL on to the AHU and sorting out the fitting of the LT intercooler.

Not many photos as was in a rush needed to get it done as quick as possible as the bus is my daily drive

so here are my only photos

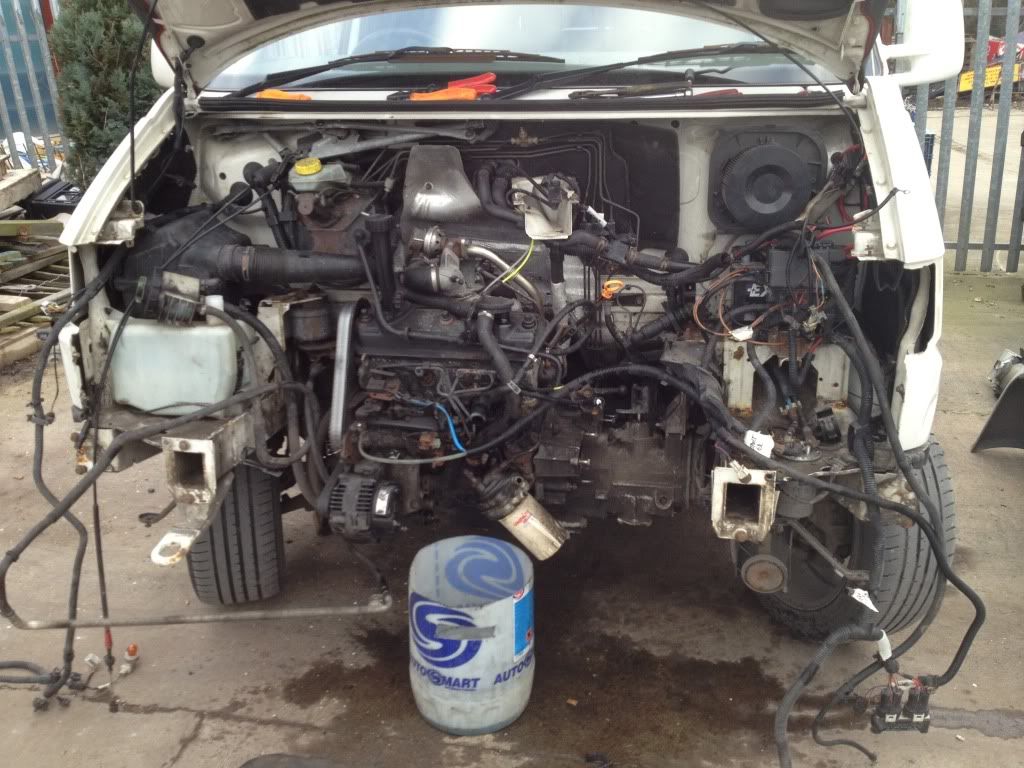

started stripping the van out

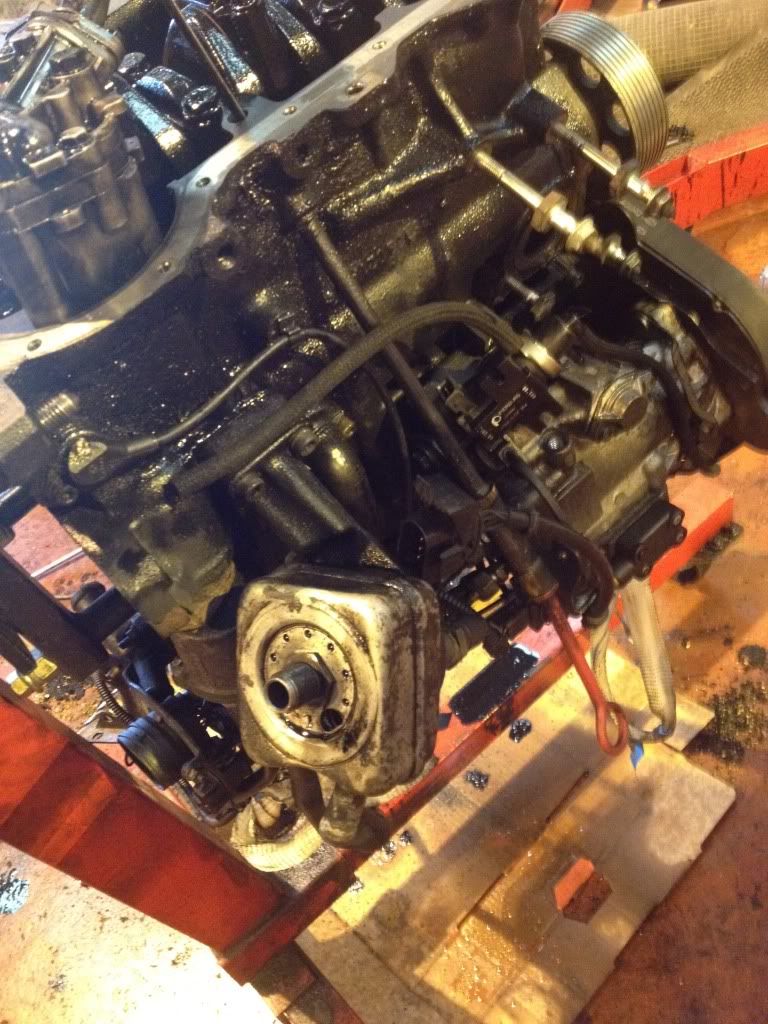

removing sump and oil pick up tube from AHU and fit oil filter housing from the ABL i also fit the ABL power steering pump, alternator, inlet and exhaust manifolds, sump, pickup tube, vac pipe, water housinh from the side of the head,
i used the AHU flywheel and clutch.



drilled the new dipstick tube, i just left the AHU dip stick in place, drilled and tapped the new engine mounts i also took the time to tap out all the bolt holes that will now be used.

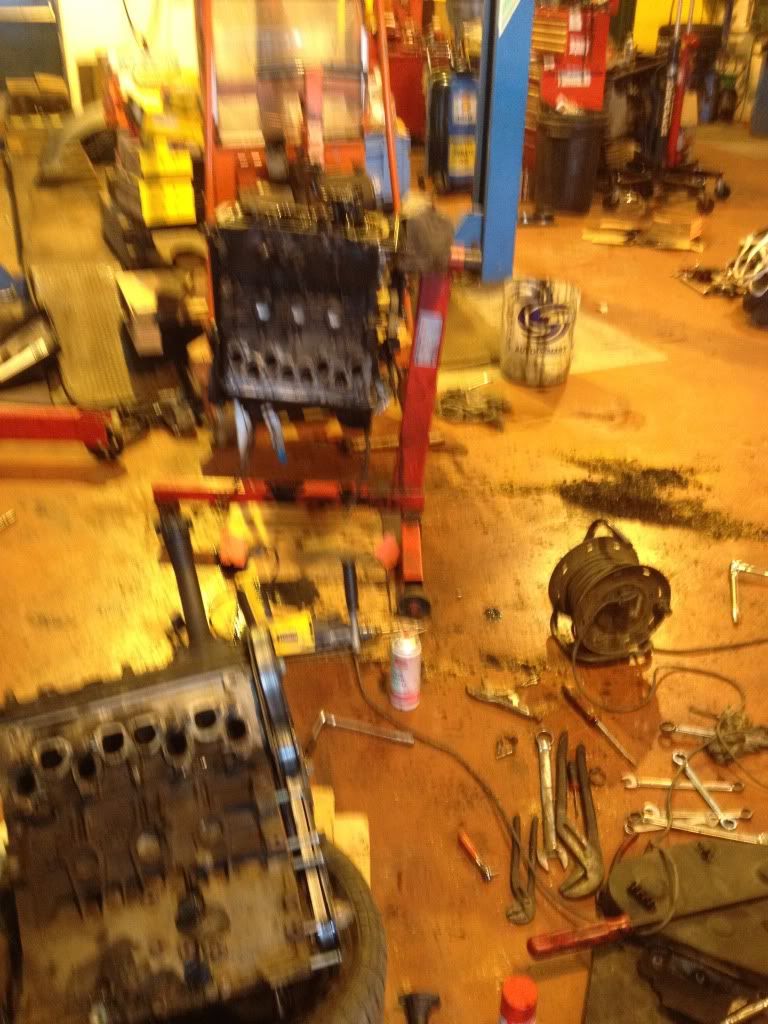

Carnage took some right mopping up

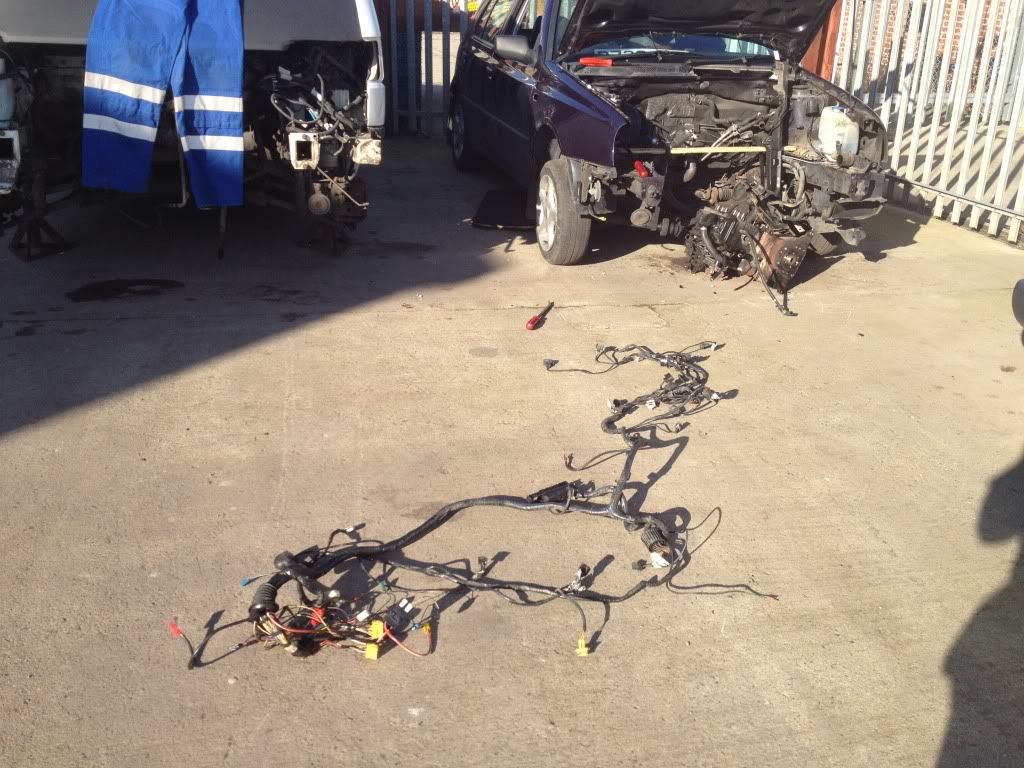

loom out of the golf (took an hour) stripped all the loom apart follow the guide its simple...T:
would definatly invest in the 2.5tdi pedal and bracket makes the job a little easier.


Thats all i have at the moment.

Just a couple of niggling problems i have a intermittent fault on the stop light switch will goes away when i press the pedal

And could some one let me know if the N75 is suppose to be clicking all the time on tickover?

And once again thanks people

Bring on the black I


·
Registered
Joined
·
1,960 Posts
Nice work and that's quick work. Starting on mine tomorrow I'm glad to say, can't wait as been off the road since boxing day. Good effort mate.


·
Registered
Joined
·
1,960 Posts
Cheers dude appreciate that. Like the idea of just leaving the Ahu plug in. Can't see why it would hurt? Love my van and its killing me not having it. Actually got excited butterflies about getting it done. Love it.


·
Registered
Joined
·
1,960 Posts
Well done mate, I'm stripping my loom this eveing. Got all my bits for the TDi ready. Changing all gaskets etc on mine. New belt kit and water pump arrived Saturday. I'm off tomorrow and Wednesday so I'm hoping to crack on and get the engine in. Nice work, got any photos of it fitted?

Robbie


·
Registered
Joined
·
231 Posts
Discussion Starter · #10 ·
Well done mate, I'm stripping my loom this eveing. Got all my bits for the TDi ready. Changing all gaskets etc on mine. New belt kit and water pump arrived Saturday. I'm off tomorrow and Wednesday so I'm hoping to crack on and get the engine in. Nice work, got any photos of it fitted?

Robbie
Ill take some pictures on wednesday as I'm going to stick the golf 5th gear in.
are you putting a new rear crank seal in?


·
Registered
Joined
·
1,960 Posts
Ill take some pictures on wednesday as I'm going to stick the golf 5th gear in.
are you putting a new rear crank seal in?
is that crank side or gearbox side (I suspect g/box)? I wasn't going to but do you think I should? engine only done 79k.


·
Registered
Joined
·
231 Posts
Discussion Starter · #13 ·
is that crank side or gearbox side (I suspect g/box)? I wasn't going to but do you think I should? engine only done 79k.
Yes it gearbox side, while your in there with the gearbox and flywheel removed i would stick one on, there not that expensive mine had done 81k but it was just weaping when i stripped it down.
